Vaquform DT2
Digital Desktop Thermoformer
Forming Area: 280mm x 220mm
Sheet Size: 330mm x 250mm
Thickness range: 0.2-3.0mm
Heater temperature: upto 280 degree celsius
₹160,000
MRP is inclusive of all taxes.
Product is out of stock
Description

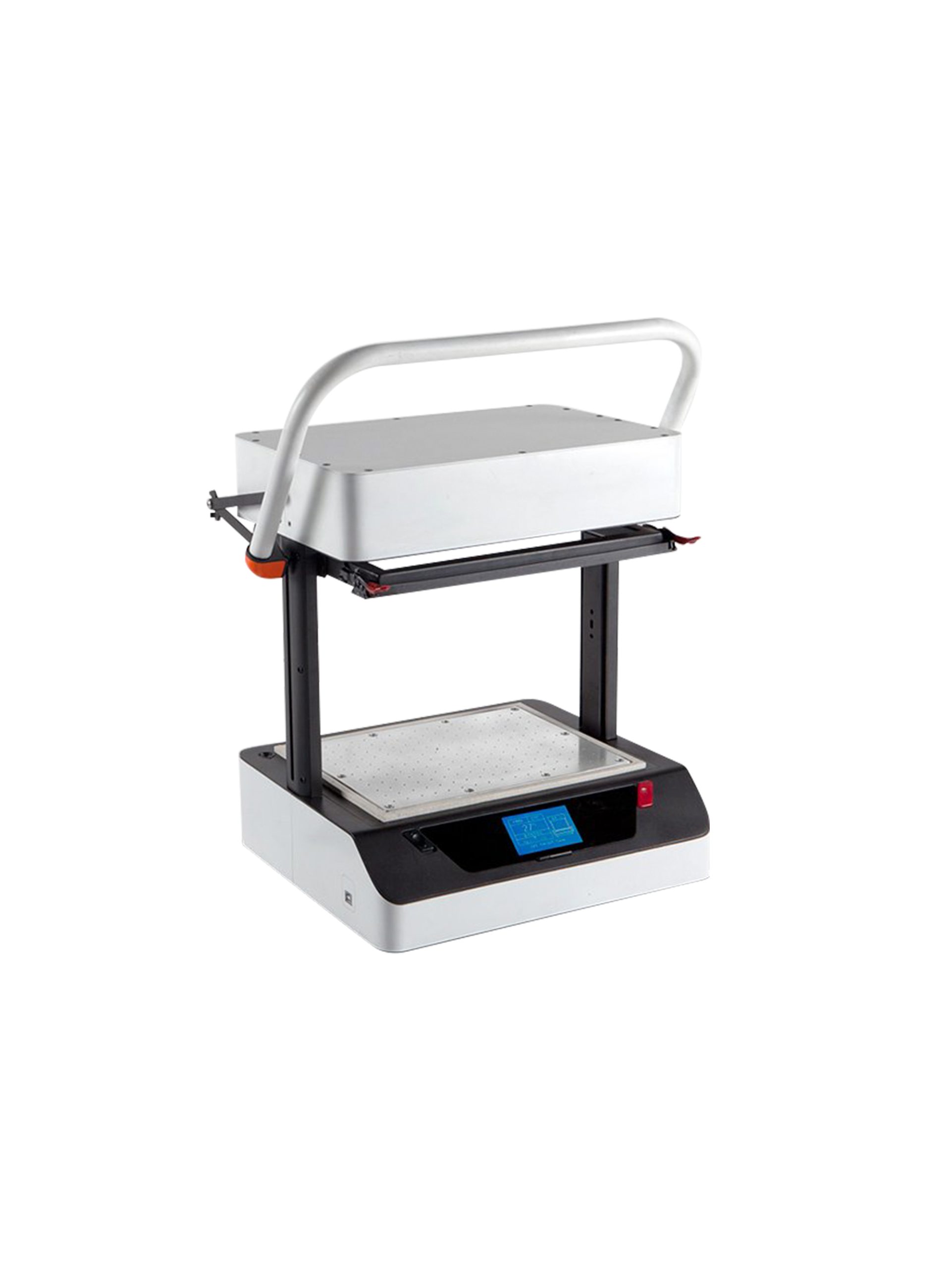

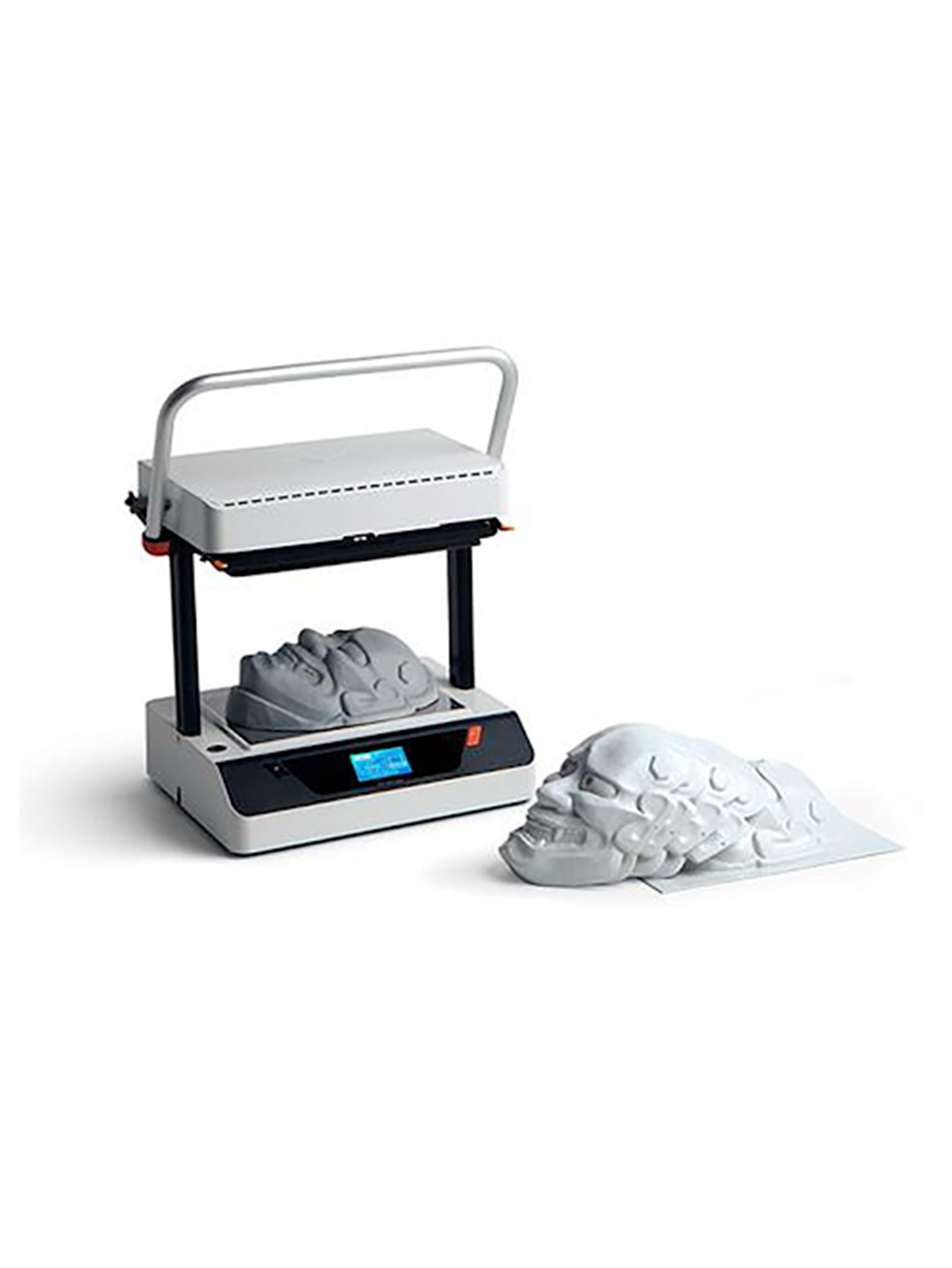

Vaquform is a manually operated vacuum forming machine that can produce industrial-grade plastic moldings while being compact enough to fit on a desktop.
This machine is the first of its kind to provide a user interface that is similar to what you might find in your smart appliances. There are pre-programmed process controls and user sensors that make it easy to use.
The powerful ceramic heaters allow you to prepare the plastic sheet in a few minutes, while the built-in hybrid vacuum gives high accuracy and mold detail each production cycle.
Vaquform can form 0.30mm to 3.00mm plastic sheets (330mm x 250mm) with a maximum draw height of 200mm. This device works for any electrical supply between 100V to 240V AC.
Product Specification
| ITEM | SPECIFICATIONS |
| Sheet Size | 330 mm x 250 mm |
| Maximum Sheet Thickness | 3.0 mm |
| Minimum Sheet Thickness | 0.2 mm |
| Forming Area | 280 mm x 200 mm |
| Maximum Depth Draw | 200 mm |
| Overall Width | 400 mm |
| Overall Height | 405 mm |
| Overall Depth | 335 mm |
| Weight | 9 kg |
| Standard Input Voltage | 100 V – 240 V |
| Standard Frequency | 50, 60 Hz |
| Standard Wattage | 1.32 kW |
| Noise Level | 65 dB |
| Heater Temperature | up to 250 deg Celsius |

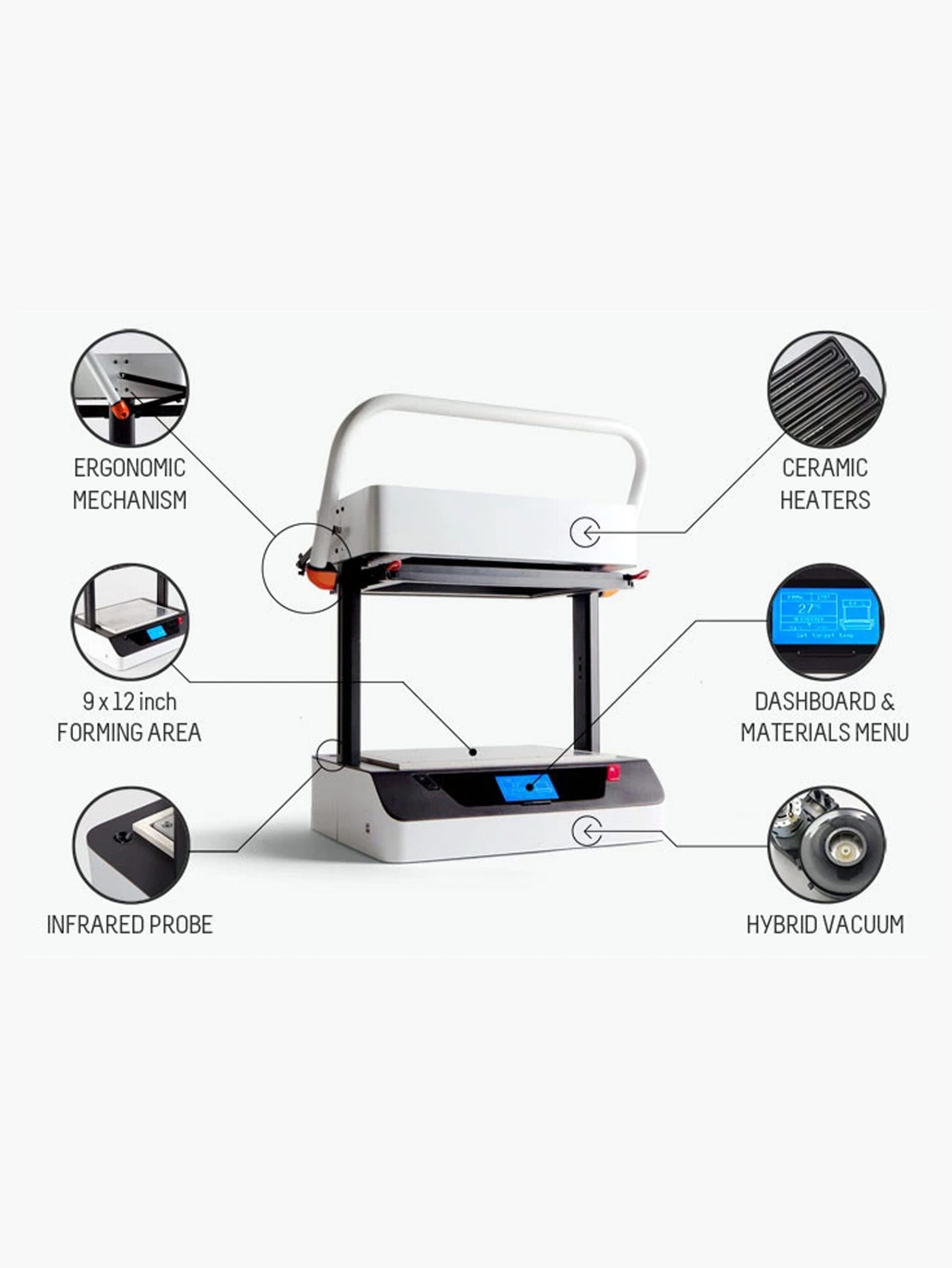

Product features
BUILT-IN HYBRID VACUUM: A patent-pending system that combines high airflow and vacuum, speed and power.
EASY TO USE: The built-in process controls and ergonomic design make forming effortless.
AUTOMATIC HEATING: Regulated by sensors, the industrial grade ceramic heaters ensure consistent and safe heating of plastic sheets.
PRECISE CONTROLS: Customize the temperature (up to 1°) and vacuum power needed for each pull.
Additional information
| Brand | WOL 3D |
|---|
