Description

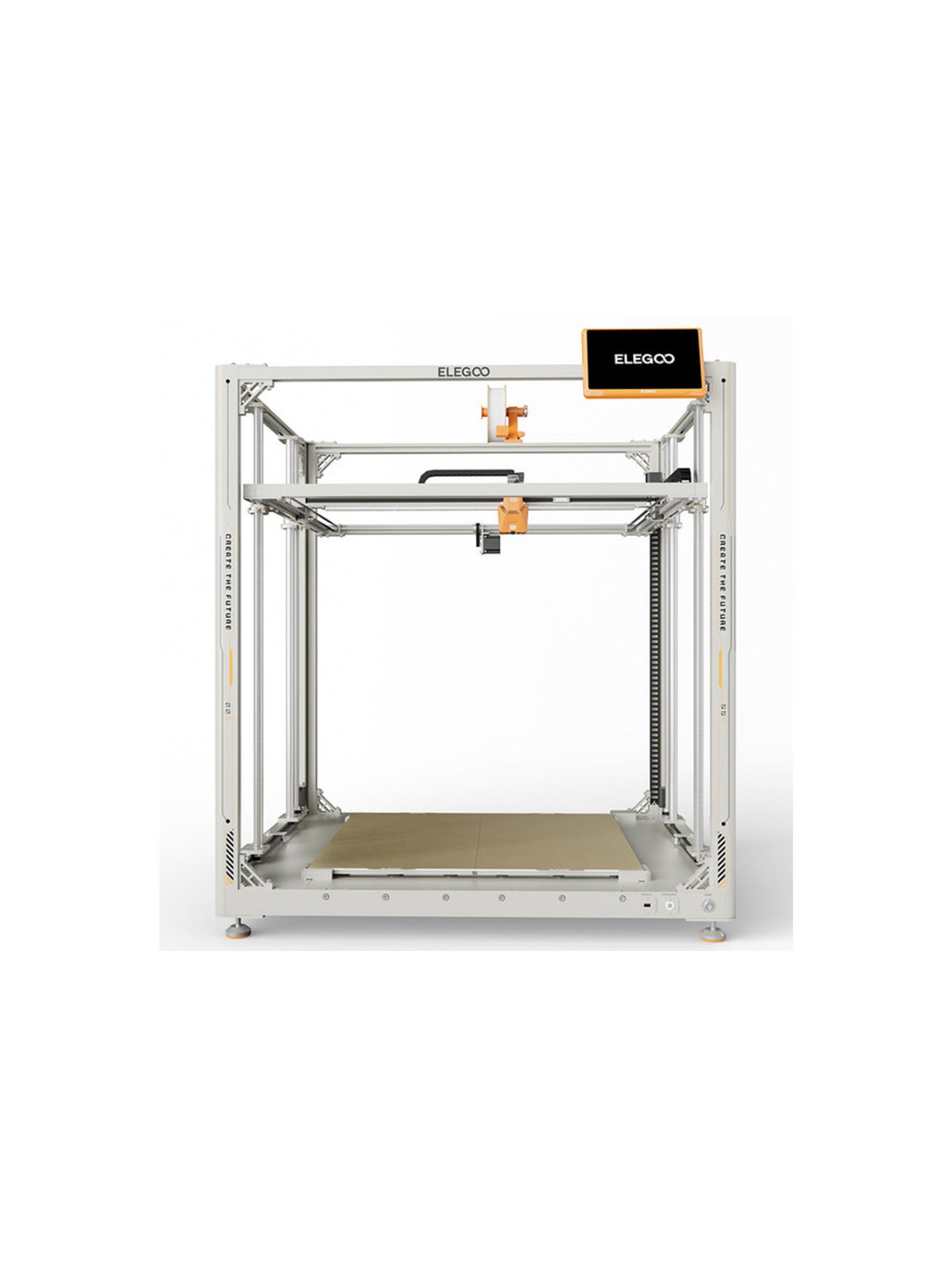

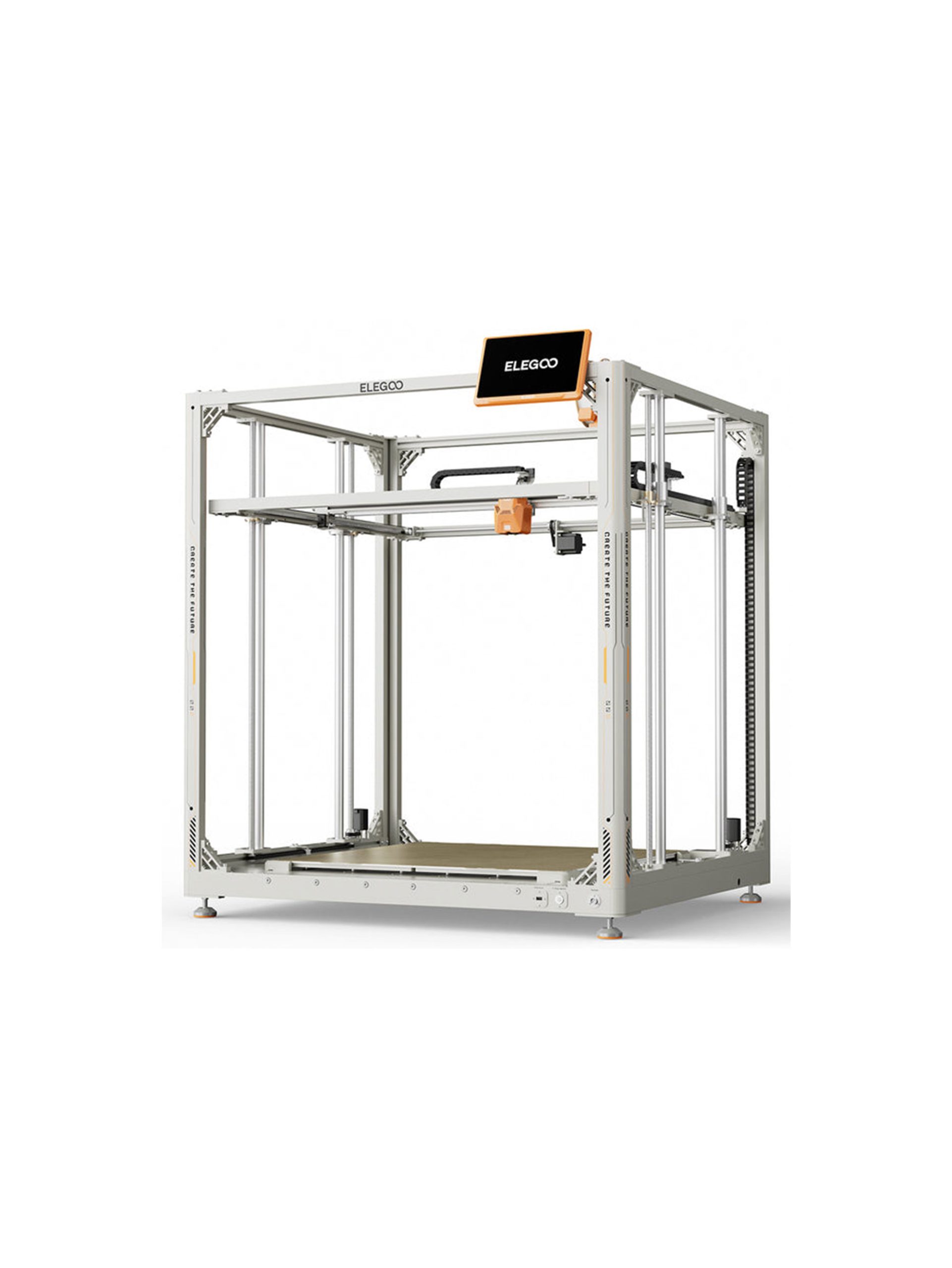

ELEGOO OrangeStorm Giga: Gigantic Volume Fast FDM 3D Printer
Free your mind, dare to think big | 800mm * 800mm * 1000mm Printing Size | Up to 300mm/s Printing Speed

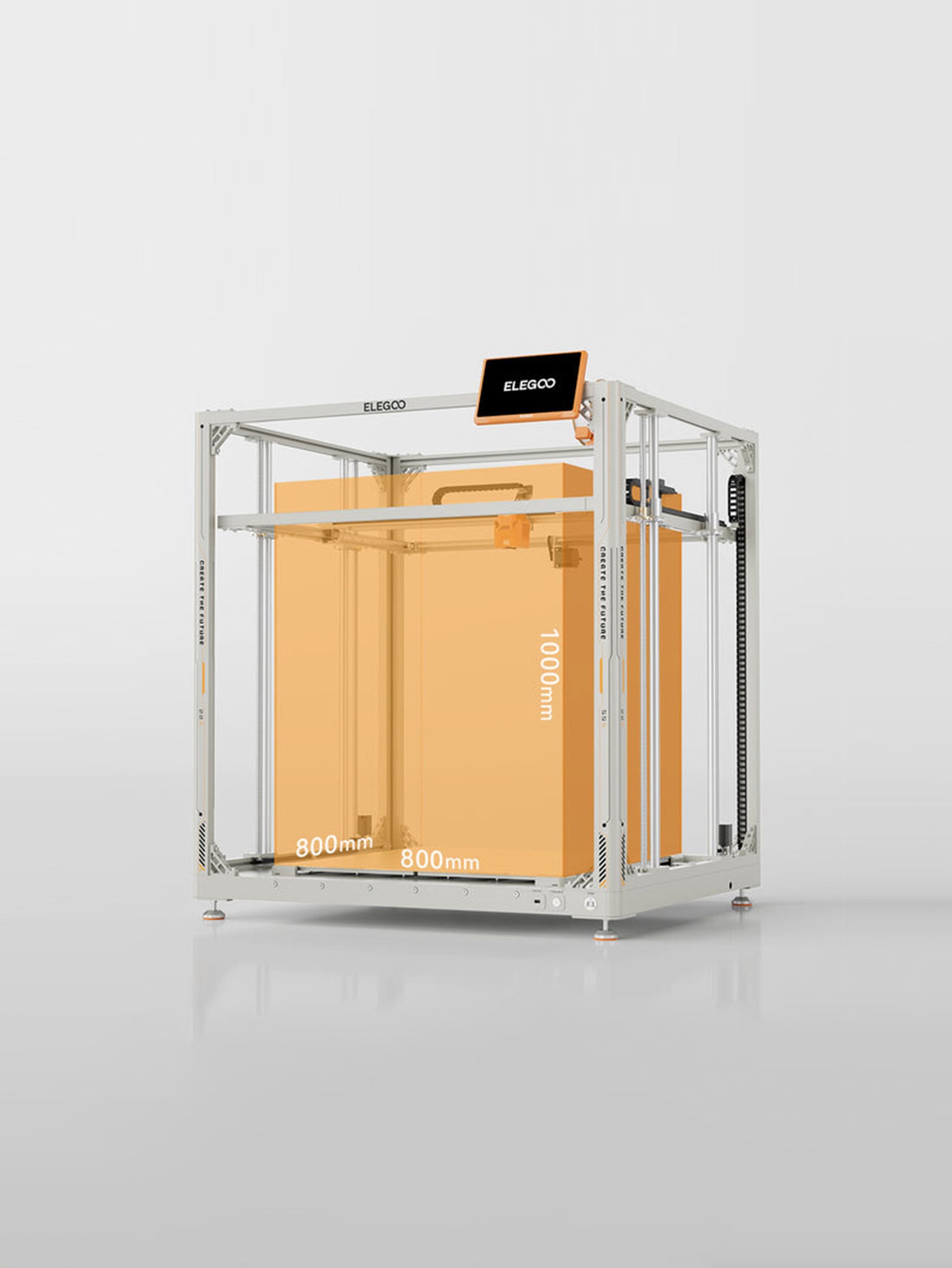

Gigantic in Size
With a build volume of 800mm x 800mm x 1000mm, the industrial-grade FDM printer not only meets the user’s printing needs for oversized models, but also reduces the need to cut models into smaller sections for efficient printing.

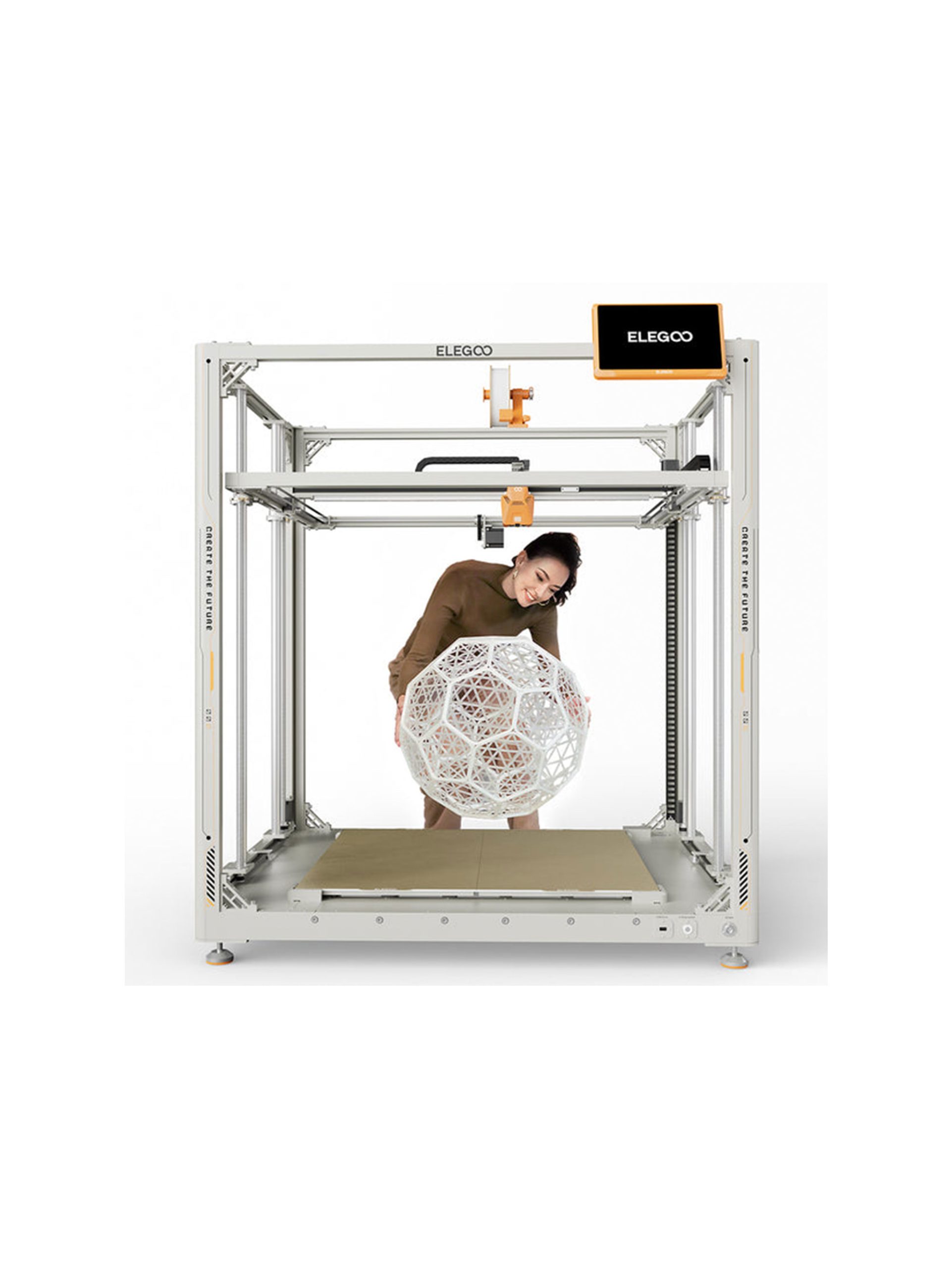

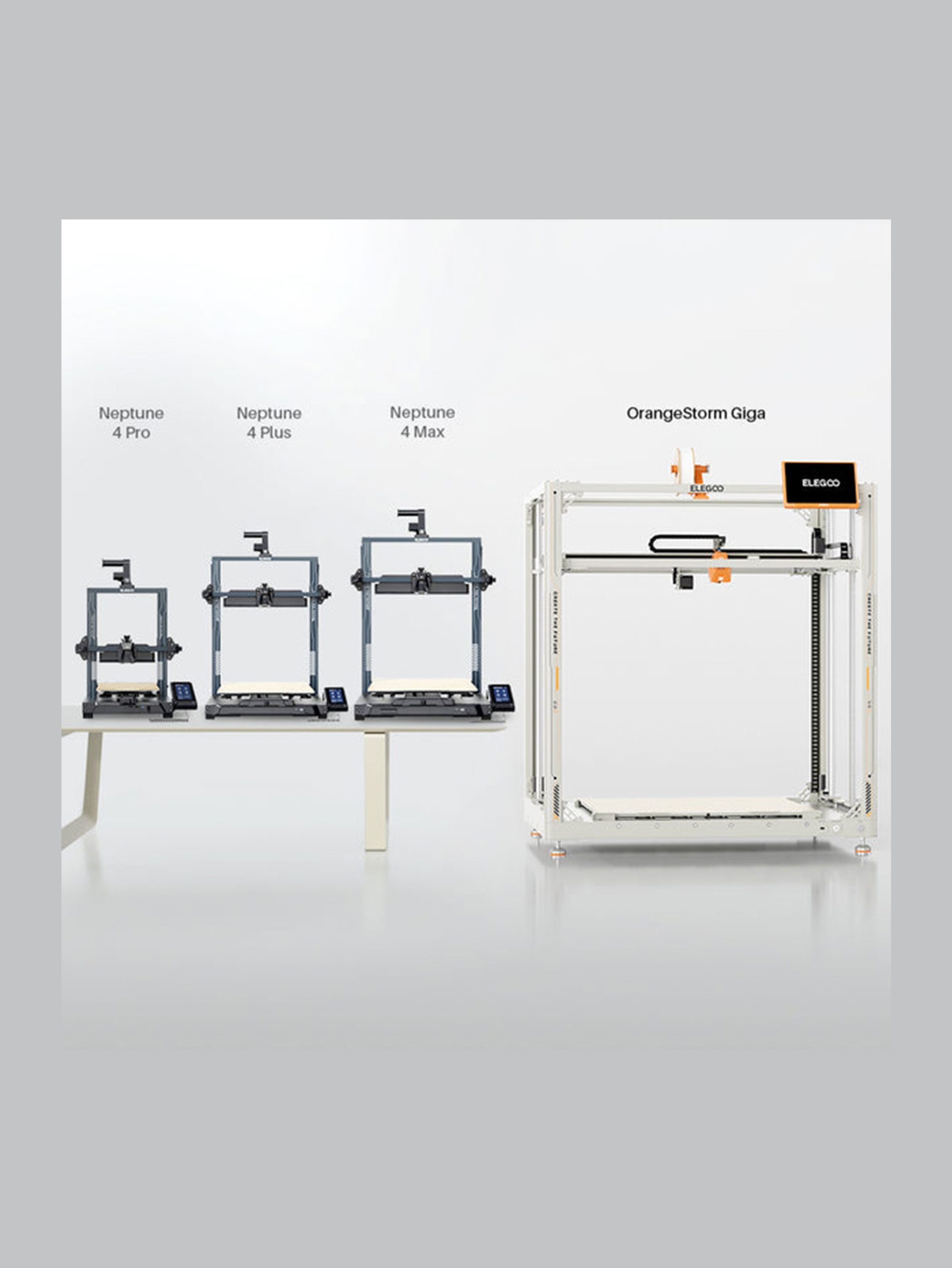

*To better understand how large this printer is: Video or 3D Model Mockup of Giga.
Efficient Heated Bed
The heated bed consists of four independent (410*410mm) PEI magnetic high-temperature platforms with a maximum temperature of 100°C.
The four platforms can be heated simultaneously to reach 100°C over the entire area in 17 minutes (Ambient temperature: 25℃).
The platform where the model is located can also be automatically recognized and heated independently, or manually and independently controlled for increased energy efficiency.
Fast Printing
Utilizing a 64-bit 1.5G clock speed quad-core high-performance processor (SOC RK3328), it provides sufficient computing capacity while delivering 6 times the printing speed, with a maximum speed of 300mm/s (150mm/s recommended), which is the top end print speed for printers of its size.

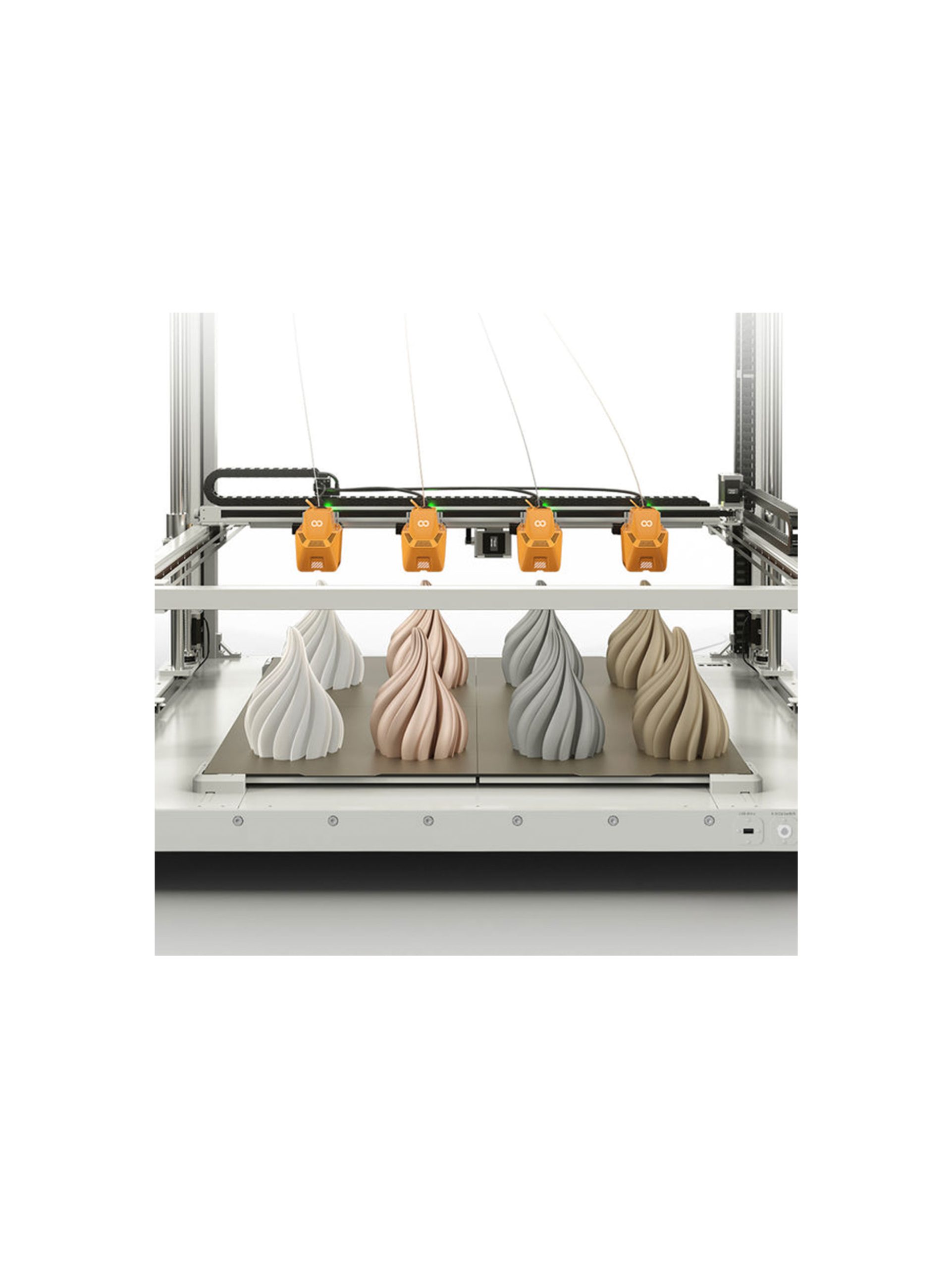

Multi-Nozzle Printing
Three additional printheads can be added to the X-axis to realize simultaneous printing with four nozzles, supporting printing four of the same model，while each nozzle can be equipped with the same material and different color filament to achieve four different colored models of the same kind.
Powerful Cooling Fan
Thickened double-sided cooling fans can comprehensively enhance the model printing results. In addition, the fans are equipped with an intelligent control function that stops working when printing is complete, which saves energy and reduces noise as well as prolongs the lifespan. (5015 ball blower fan*2, 4010 ball axial fan*1)
High-Quality Craftsmanship
Integrated body, elegant yet durable. The X-axis and Y-axis are linear guides, effectively improving printing stability and increasing lifespan. The Z-axis features an upgraded version of the Z-Axis rod to make the machine run smoothly and ensure leveling precision. Machine mounts are designed with a carbon steel round base and rubber round anti-slip pad bottom.
Upgraded Nozzle
The upgraded 300℃ high-temperature nozzle adopts a proximal double-gear extrusion structure and full titanium alloy heat pipe. Plus, the nozzle is upgraded to chrome zirconium copper with a 60W ceramic heating pad for smoother and more uniform extrusion, which improves the printing precision.
In addition, the nozzle PID auto-calibration function provides more precise control of the nozzle temperature and the built-in acceleration sensor automatically calibrates resonance compensation parameters to further ensure print quality and enhance your printing experience.
Nozzle Diameter(included): 0.6mm
Nozzle Diameter(optional): 0.4mm/ 0.8mm/ 1mm
Specification
Product Model
OrangeStorm Giga
Printing Technology
FDM (Fused Deposition Modeling)
Voltage
100-120V/220-240V
File Transfer Method
USB, LAN, WIFI
File Format
STL, OBJ
UI Language
English, French, German, Russian, Italian, Spanish, Japanese, Chinese
Build Volume
800 x 800 x 1000 mm³
Printing Platform Size (PEI Area)
820 x 820 mm²
(4 independent 410 x 410 mm² PEI plates)
Machine Size
1224 x 1164 x 1425 mm³
Package Size
Bottom + XY Axis Components: 1350 x 1215 x 420 mm³
Two Z-Axis Components: 1350 x 1215 x 350 mm³
MAXIMUM SIZE FOR MACHINE ACTIVITY/MM
1224 x 1520 x 1570
Max. Nozzle Temperature
300°C
Max. Hot bed Temperature
100°C (ambient temperature: 25°C)
Filament Compatibility
PLA / PETG / TPU
Net Weight
104kg
Gross Weight
145kg
Resume Printing
Yes
Filament Detection
Yes
Max Speed of Tool Head
300 mm/s
Max Acceleration of Tool Head
5,000 mm/s²
