Description
Guider 3 Bigger, Lighter and More Worry-free
As a new generation of lightweight 3D printer, Guider 3 has characteristics such as larger print space ratio and convenient nozzle replacement. Equipped with the dual build plate options, quick-disassembly nozzle, HEPA 13 air filter, remote monitoring and other functions, it provides intelligent and convenient printing experience for education, small enterprises and individual users, making it a cost-effective choice for small batch production applications.
The lightweight equipment and the powerful production management system ensure 24/7 stable and continuous printing during the production and development process, making it suitable for multi-scenario applications.
Power Loss Recovery System
It can save the printing state in the event of an unexpected power failure and continue printing after the power is restored.
Integrated Equipment Management System
Our FlashPrint 5 slicing software enables multi-machine joint control and integrated device management in small batch production.
Real-time Monitoring of the Printing Process
With the camera equipped, the printing process and status can be monitored in real time easily through FlashPrint 5 and UI interfaces.
Open Material System
The 320℃ high-temperature extruder is compatible with ABS / PLA / PC / PA / HIPS / ASA / PETG / PA-CF, etc., supports 3rd-party materials, suitable for various applications.
Main features
Guider 3 is specially designed for small batch production applications. The lightweight and compact machine structure, simple and powerful management system, and fast and efficient delivery capability guarantee continuous small batch manufacturing process in various scenarios, and provide low-cost and simple production methods.
The new machine structure design improves the utilization rate of the internal space of the equipment, realizes the expansion of the build volume while making the equipment occupying less space, offering flexible layout of the production line.
The entire frame adopts aluminum structure, and the enclosure adopts lightweight and durable ABS and acrylic sheets, which realizes the lightweight design from the inside out while ensuring stable printing as well.
Powerful Dual-platform System
Guider 3 offers two different platform options: glass platform and flexible steel plate platform. Thus, users can make personalized choices according to their needs when printing different filaments, which makes it suitable for diversified printing scenes.
CoreXY Structure for Rapid Production
Guider 3 contributes to efficient workflow and responds to the rapid delivery demand of customized market; It adopts the smoother CoreXY motion structure, supports high-speed and low-noise printing, which saves the printing time, ensures stable printing, and brings efficient printing experience.
Upgraded Extruder Structure,
Quick-release Nozzle
Suitable for various filaments, the double-gear extrusion structure design increases the filament feeding force by 150% and causes less clogging issues, not inferior at all for various application requirements.
The quick-release nozzle, with multiple diameter options, is easy to replace and maintain, and can meet various use requirements.
Self-equipped Maintenance Assistant
The equipped maintenance assistant provides solutions to common printing problems, saves communication time and realizes efficient maintenance.
Parameters
- Extruder Quantity : 1
- Printing Precision : ±0.15mm or 0.002mm/mm
- Positioning Accuracy: X/Y-axis 0.011 mm;
- Z-axis : 0.0025 mm
- Layer Thickness : 0.05 ~ 0.4 mm

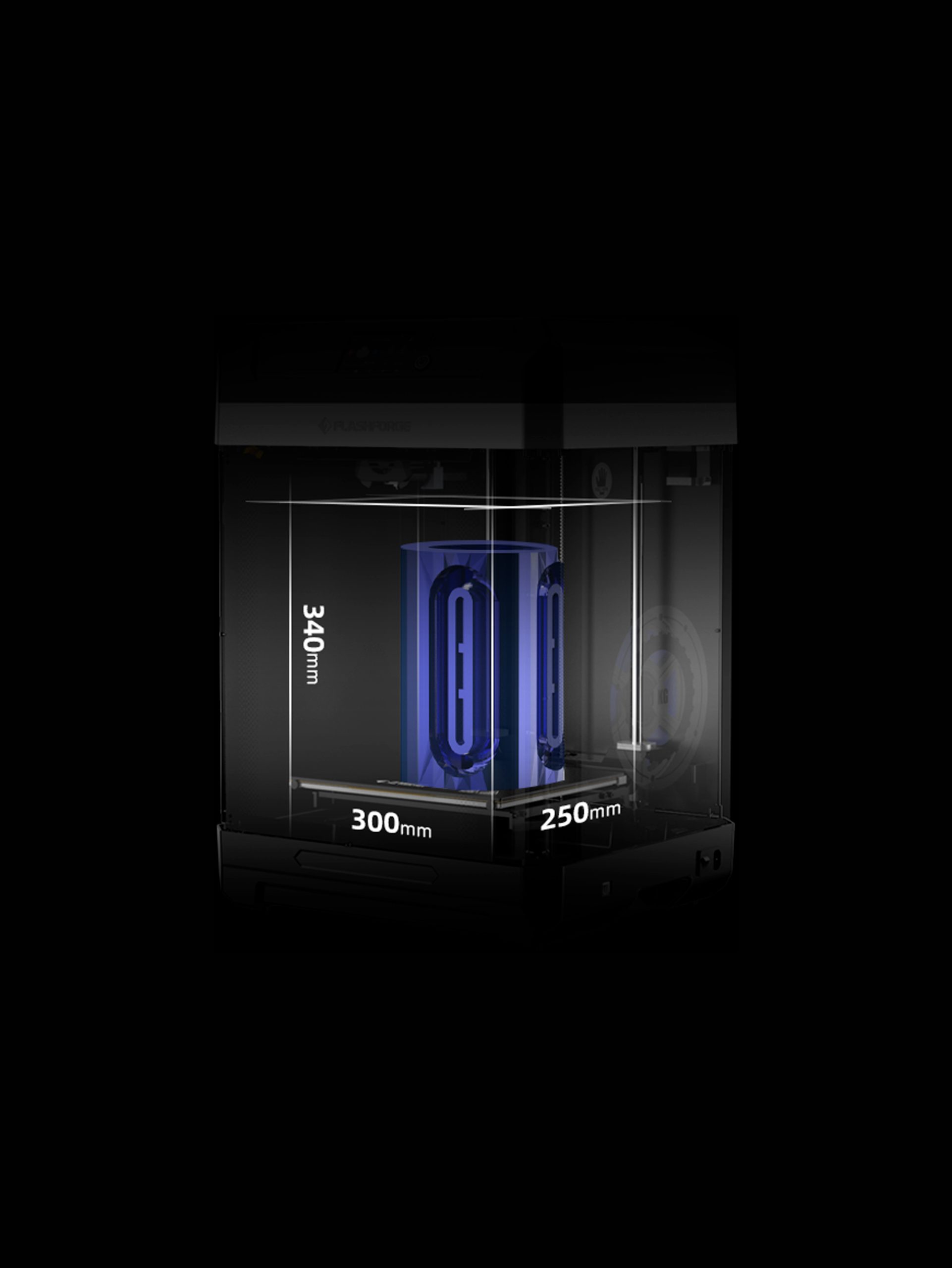

- Build Volume : 300 x 250 x 340mm
- Nozzle Diameter : 0.4 (0.4/0.6/0.8)mm
- Nozzle Type : Stainless steel nozzle
- Printing Speed: 10 ~ 250mm/s
- Maximum Extruder Temperature : 320 ℃
- Maximum Platform Temperature : 110 ℃
- Supported Filament : ABS / PLA / PC / PA / HIPS / ASA /PETG / PA-CF / PLA-CF / PETG-CF /PETG-GF
- Power Supply : AC 100-240V / DC24V / 20.8A, 650W
- Device Size : 496(L) * 436(W) * 696(H) mm
- Packaging Size : 585(L) * 530(W) * 760(H) mm
- Slicing Software : Flashprint
- Input / Output File Format Input: 3MF/ STL / OBJ / FPP / BMP /PNG / JPG / JPEG File;
- Output: GX / G File / gcode
- Printing Connection :USB Disk / Ethernet / Wi-Fi
- Certification : CE / FCC / RoHS
- Working Temperature : 15-30℃
- Compatible Operating System : Win xp / Vista / 7 / 8 / 10、Mac OS
- Compatible Slicing Software : Slic3r / Cura (Need to set up)
- Touch LCD Screen : 4.3-inch
- Printing Bed : Flexible steel plate platform /Glass platform
- Close Design
- Auxiliary Leveling
- Filament Running Out Reminding
- Replaceable Print Bed
- Ultra Silence Design
- Continue Last Printing when
- Power Off
- Remote Camera Watching
- Wireless Wi-Fi
- Ethernet
- USB Stick Interface
- Air Filter Net
- Cloud
