Description

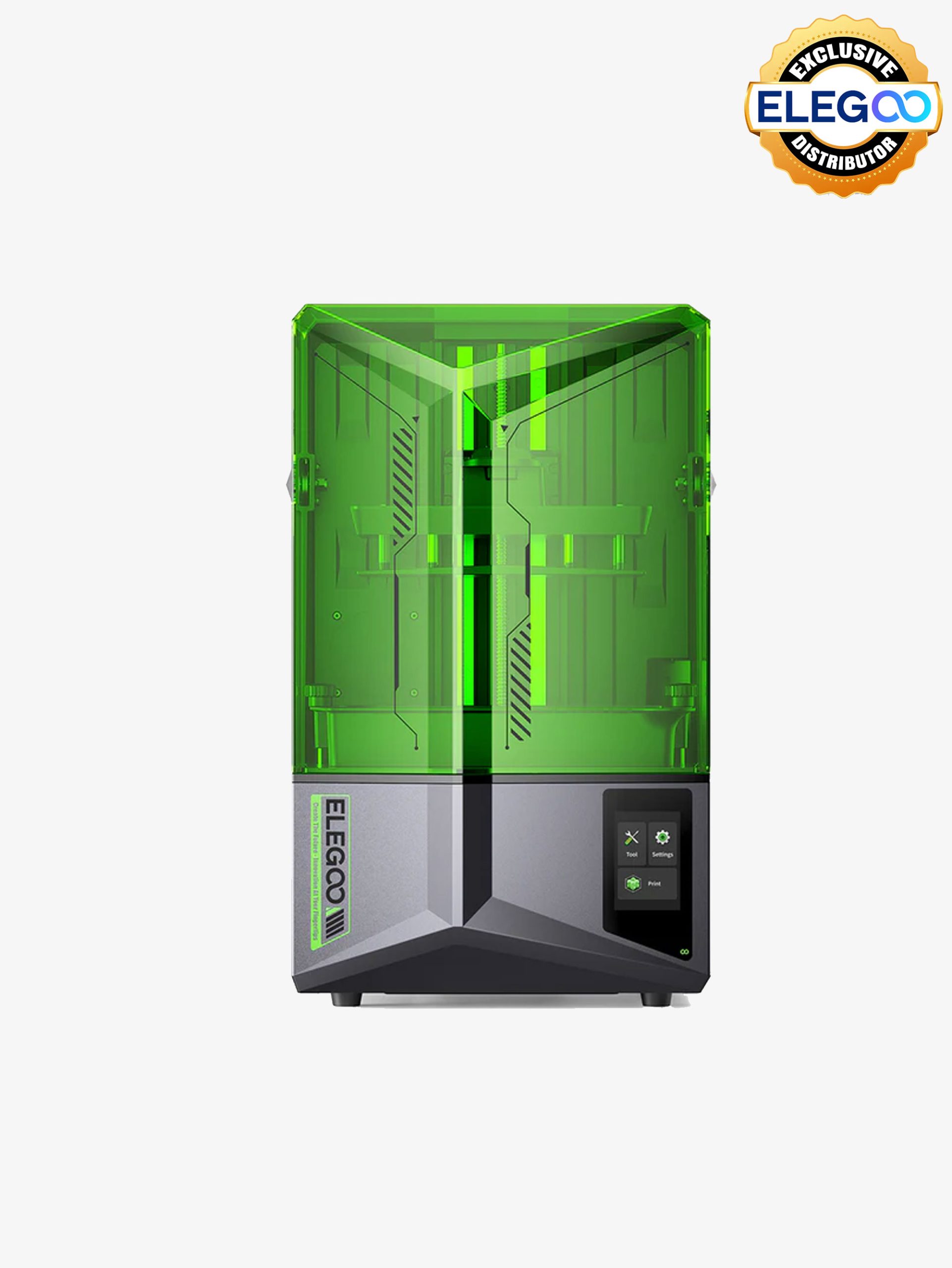

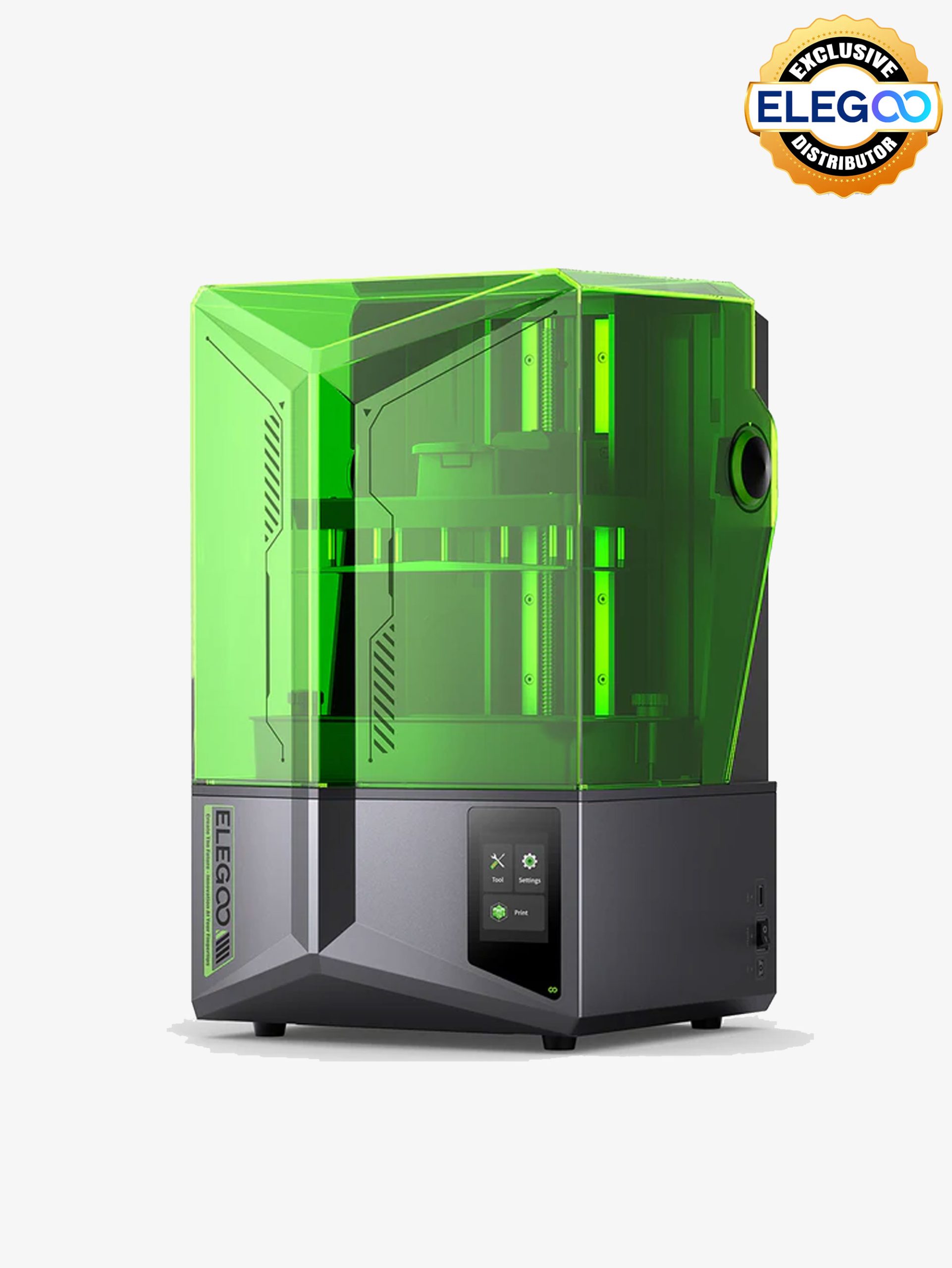

Elegoo Saturn 4 Resin printer with user-friendly features
The Elegoo Saturn 4 is a 12K resin printer with a 10-inch monochrome LCD, 11520 x 5120 resolution, and 19 x 24 μm XY resolution, delivering ultra-detailed prints. It features a 9H tempered glass protective film for durability and uses Elegoo advanced COB light source with a Fresnel lens collimator for uniform, precise prints. Ideal for high-precision and detailed models.
Elegoo Saturn 4 Resin 3D Printer is a user-friendly 12K resolution resin printer that sets new standards in precision and quality. With smart features, it not only delivers first-class, high-precision printing results but also offers an improved user experience that makes it a breeze to operate.
12K Mono LCD For Excellent Details Reproduction
With a 10-inch 12K mono LCD, the Saturn 4 boasts an incredible resolution of 11520×5120 and an XY resolution of 19×24μm, presenting you exquisite models with stunning clarity and precision. The LCD screen is equipped with a durable and anti-scratch protector made of 9H tempered glass, effectively protecting the screen from scratches and damage.
COB & Fresnel Collimating Lens For Precise Surface
When the COB light source emits light at 405nm with the combination of Fresnel collimating lens, it can achieve an ultra-low astigmatism coefficient of 0.5%, an exceptional field uniformity of 92%, and a precise angle deviation control below 5° on the forming surface, realizing accurate and even printing results with delicate finishing and intricate details.
Automatic Leveling, Print Right Out Of The Box
With its intelligent self-check and auto-leveling features, the Saturn 4 delivers a worry-free experience. Simply unbox, power on, and print – the printing experience has never been this effortless.
One-Click Self-Check
With one single click, the Saturn 4 will perform a quick self-check to ensure all its components are working properly before your printing starts.
One-Click Automatic Leveling
Thanks to its intelligent mechanical sensor, leveling the build plate has become a breeze every time once you click the button, saving your time and efforts.

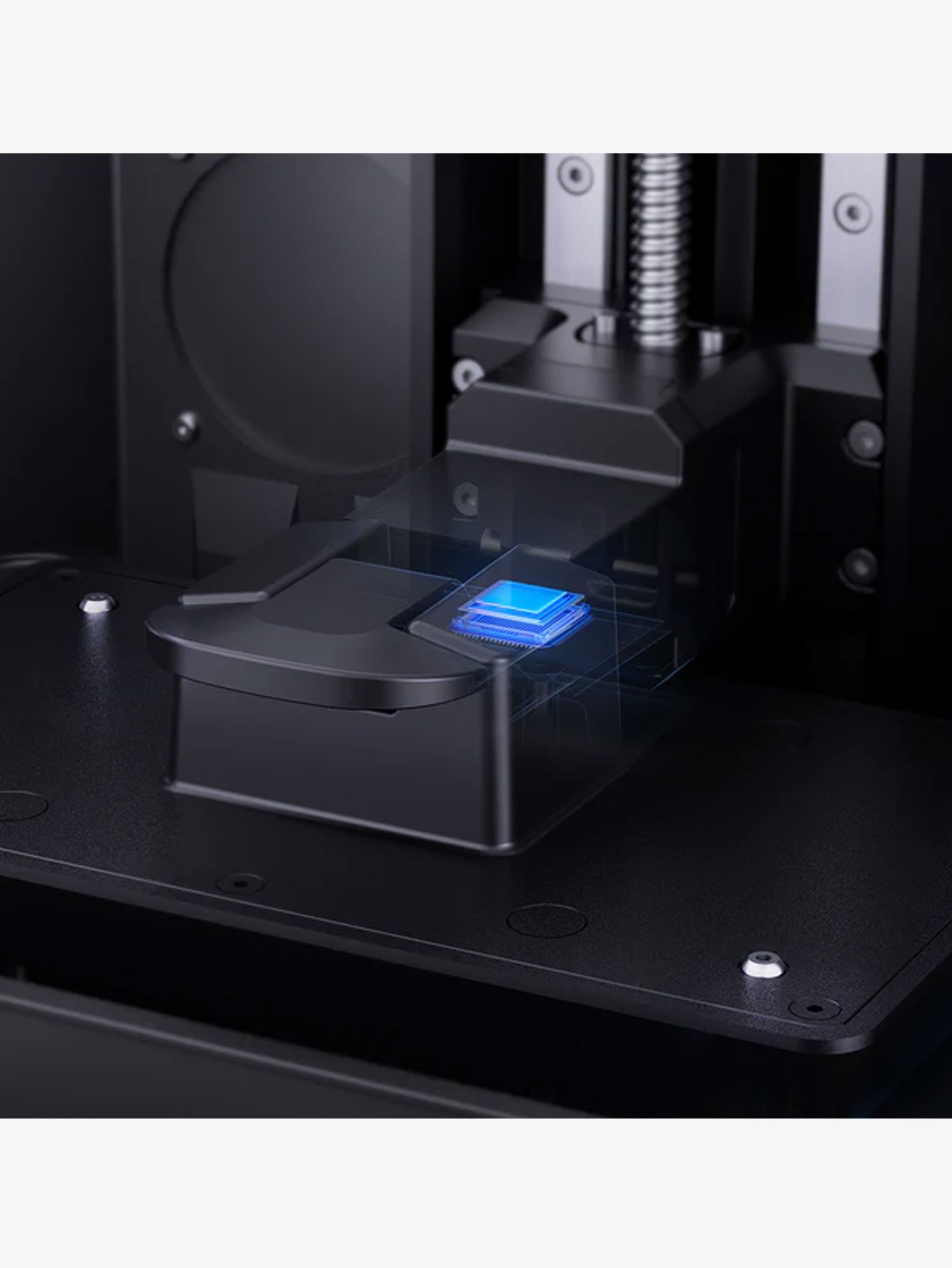

Smart Mechanical Sensor, Enjoy Worry-Free Printing
Equipped with a mechanical sensor, the Saturn 4 supports residue detection to prevent damage to the LCD screen, as well as resin shortage and leveling failure alarm to further enhance the safety and reliability during printing.
User-Friendly Design

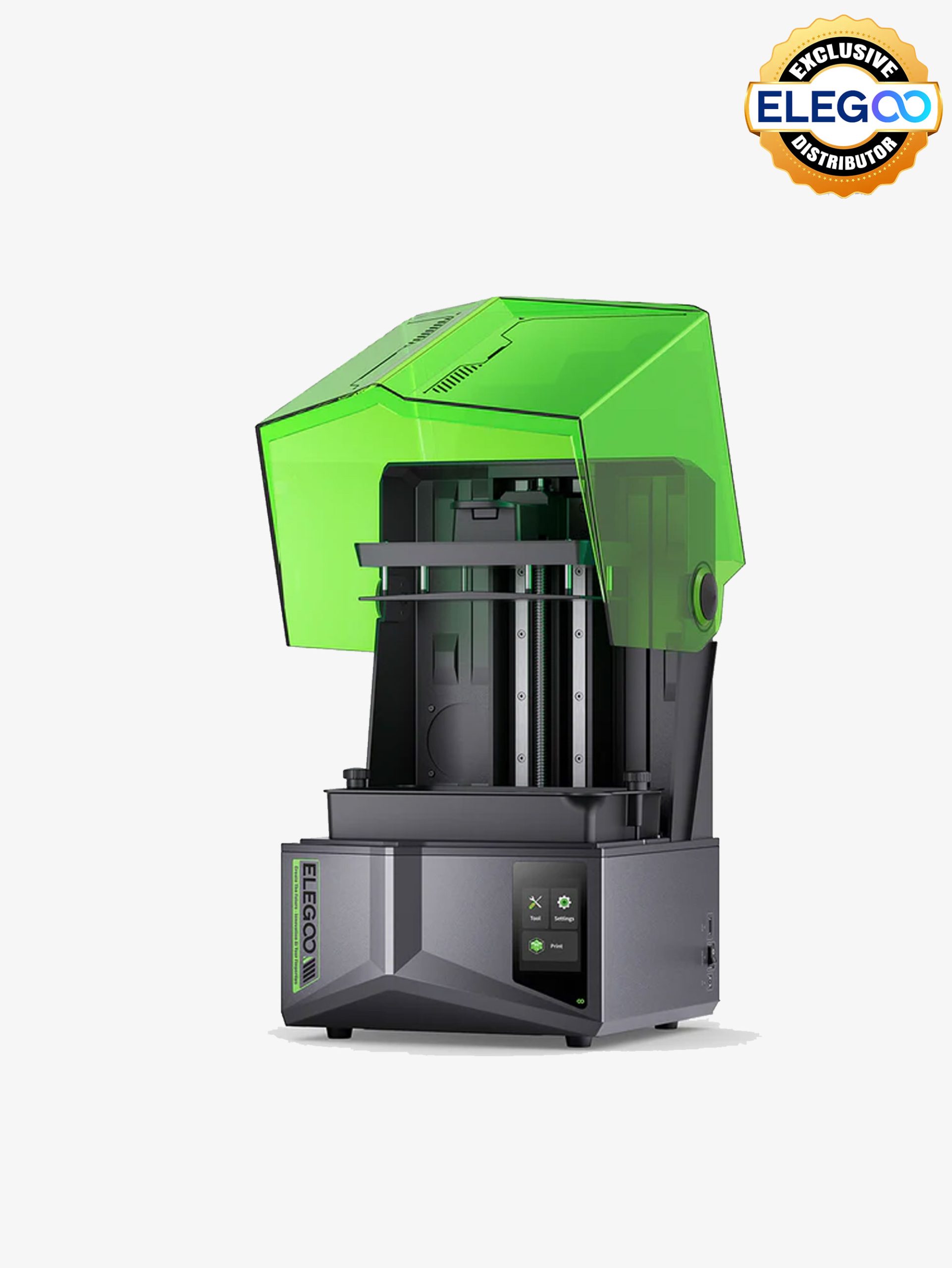

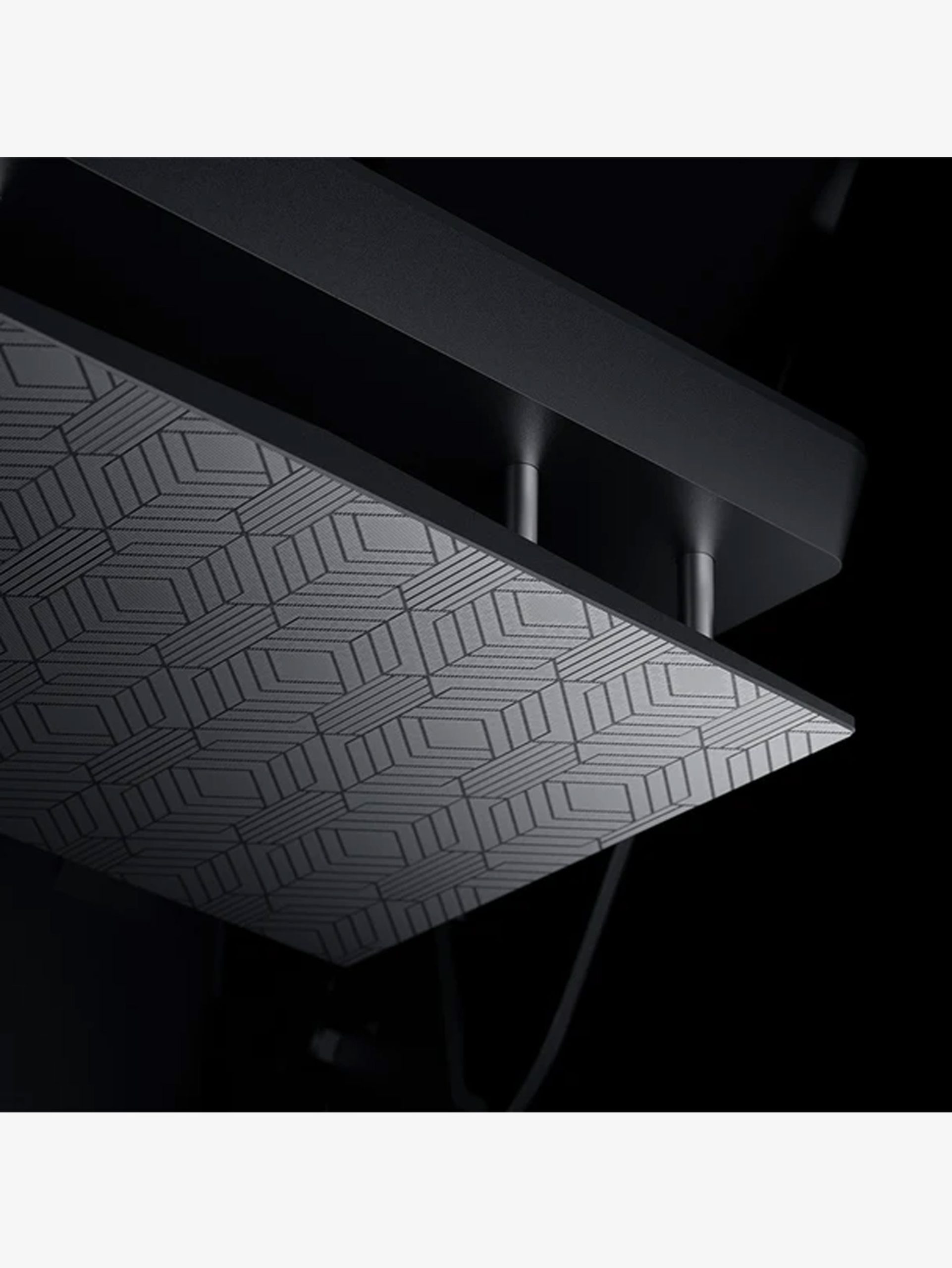

ELEGOO is dedicated to offering users a convenient printing experience. From the quick-release design of the build plate to the dual pour spouts design of the resin tank, along with the drip tray design to prevent resin drips, the replaceable tank lock, and the flip-up cover design for effortless access, every detail has been carefully considered to make your operation easier and more enjoyable.
Elegoo Saturn 4 Resin 3D Printer Specification
LCD : 10-inch 12K Mono LCD
SYSTEM : EL3D-3.0.1
SLICER SOFTWARE : Chitubox & Voxeldance Tango
TECHNOLOGY : MSLA Stereolithography
LAYER THICKNESS : 0.01-0.2mm
PRINTING SPEED : MAX 70mm/h
Z AXIS ACCURACY : 0.02mm
XY RESOLUTION : 19*24um (11520*5120)
BUILD VOLUME : 218.88mm(L)*122.88mm(W)*220mm(H)
LIGHT SOURCE : COB Light Source + Fresnel
LANGUAGES : Chinese, English
CONNECTIVITY : USB Interface

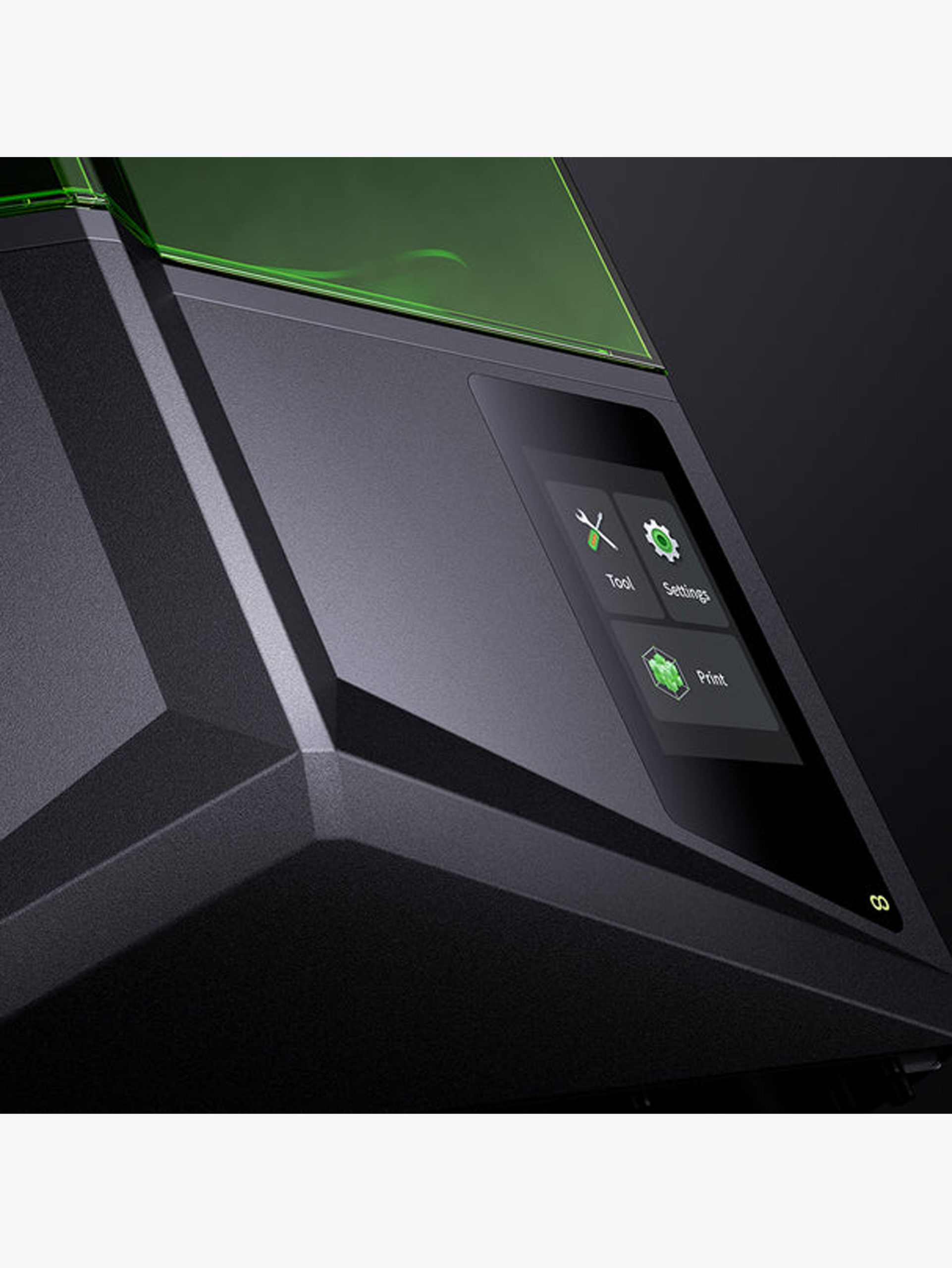

OPERATION : 3.5-inch Resistive Touch Screen
POWER REQUIREMENTS : 100-240V 50/60 Hz 24V 6A
PRINTER DIMENSIONS : 327.4mm(L)*329.2mm(W)*548mm(H)
LCD SCREEN PROTECTOR : 9H hardness tempered glass
AIR PURIFIER : USB connection unavailable, compatible with Mars Mate air purifier
OTHER FUNCTIONS : One-Click Self-Check,
One-Click Automatic Leveling,
Smart Mechanical Sensor (Resin Shortage Alarm/Residue Detection Alarm/Leveling Failure Alarm)
RESIN : Supports most resins on the market (water-washable, standard, ABS-like, plant-based, etc.)
HEAT DISSIPATION METHOD : 4 copper heat pipes + single fan
NET WEIGHT : 13.5kg
GROSS WEIGHT : 18.3kg
