Description

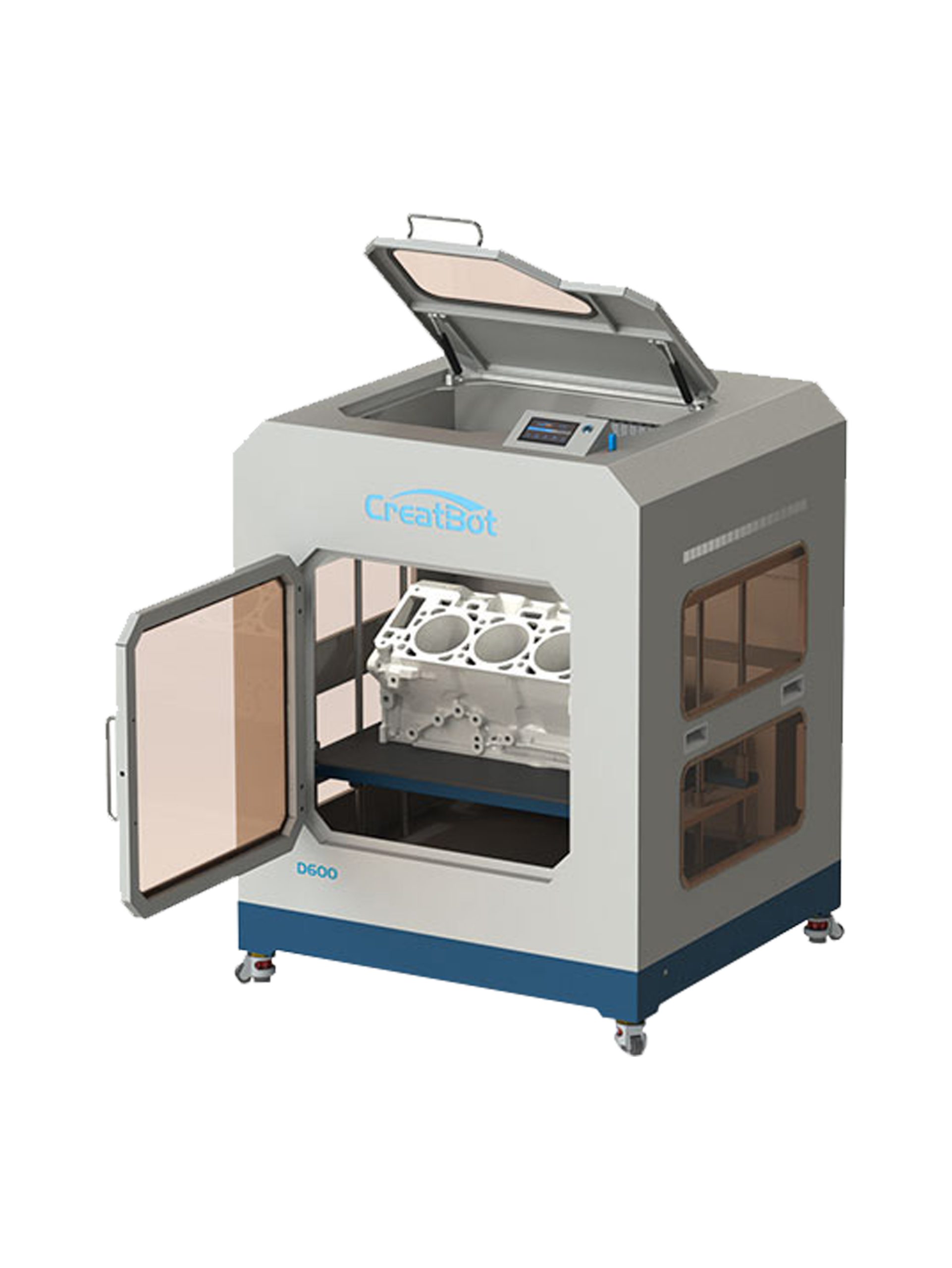

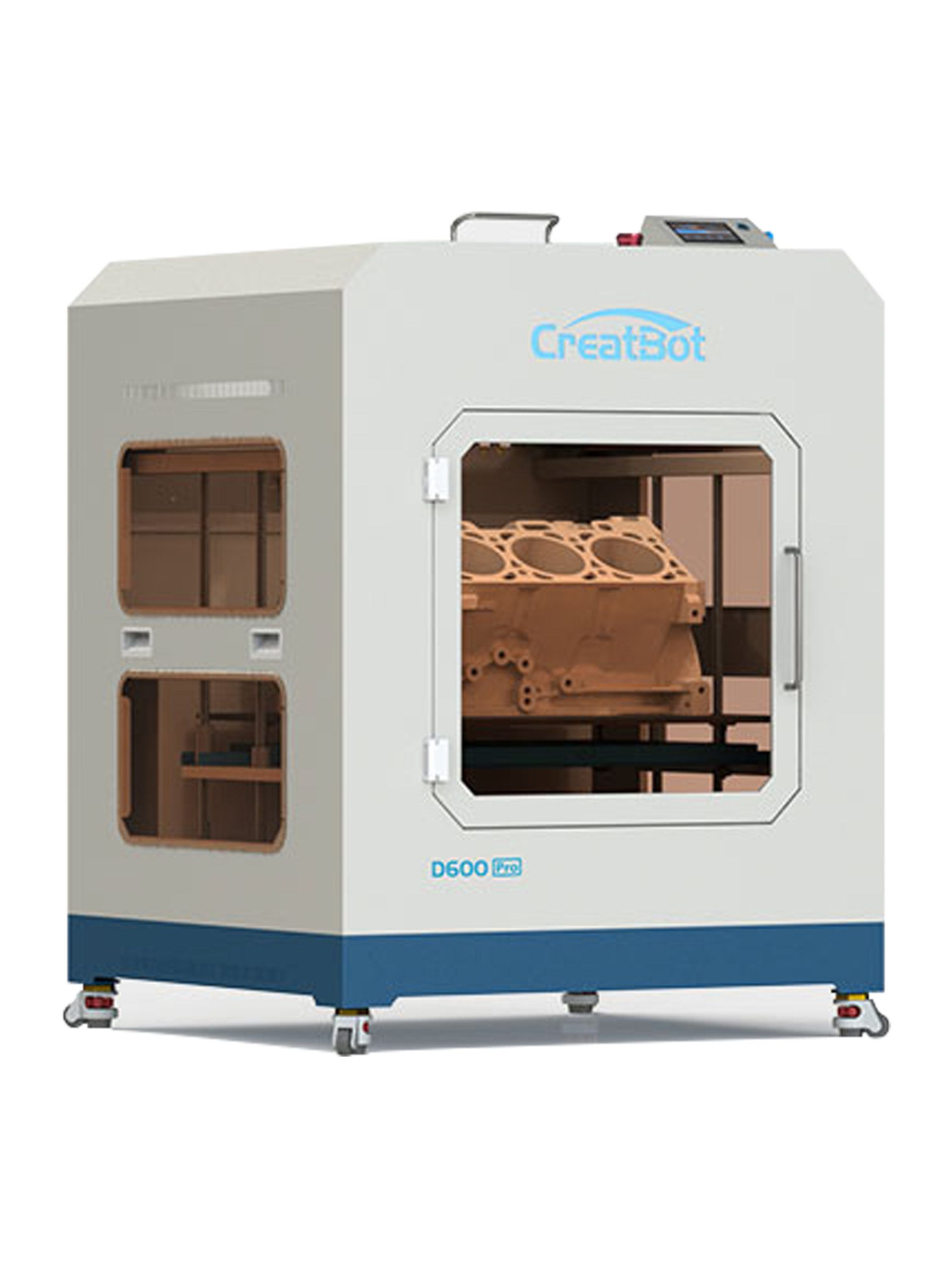

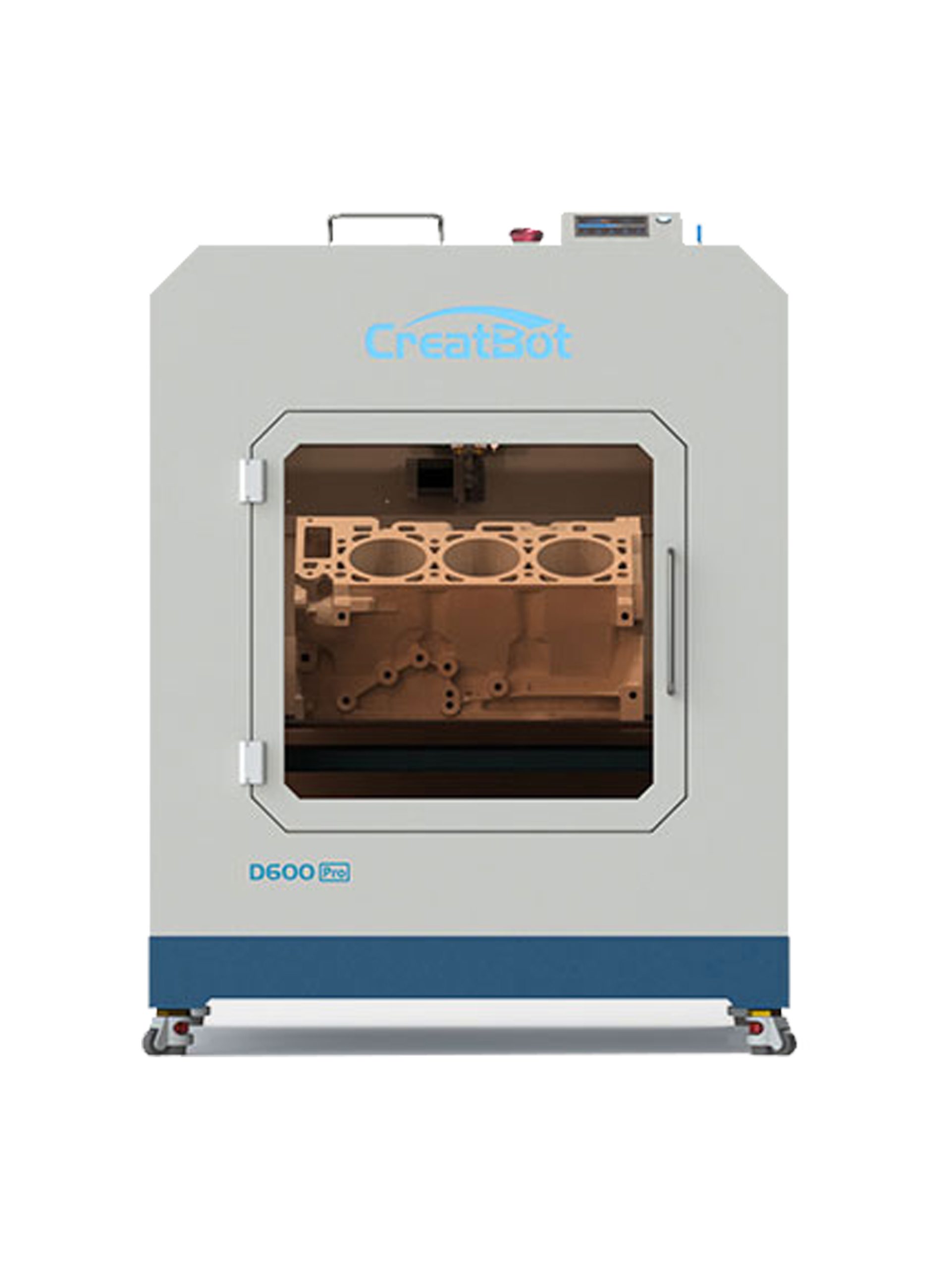

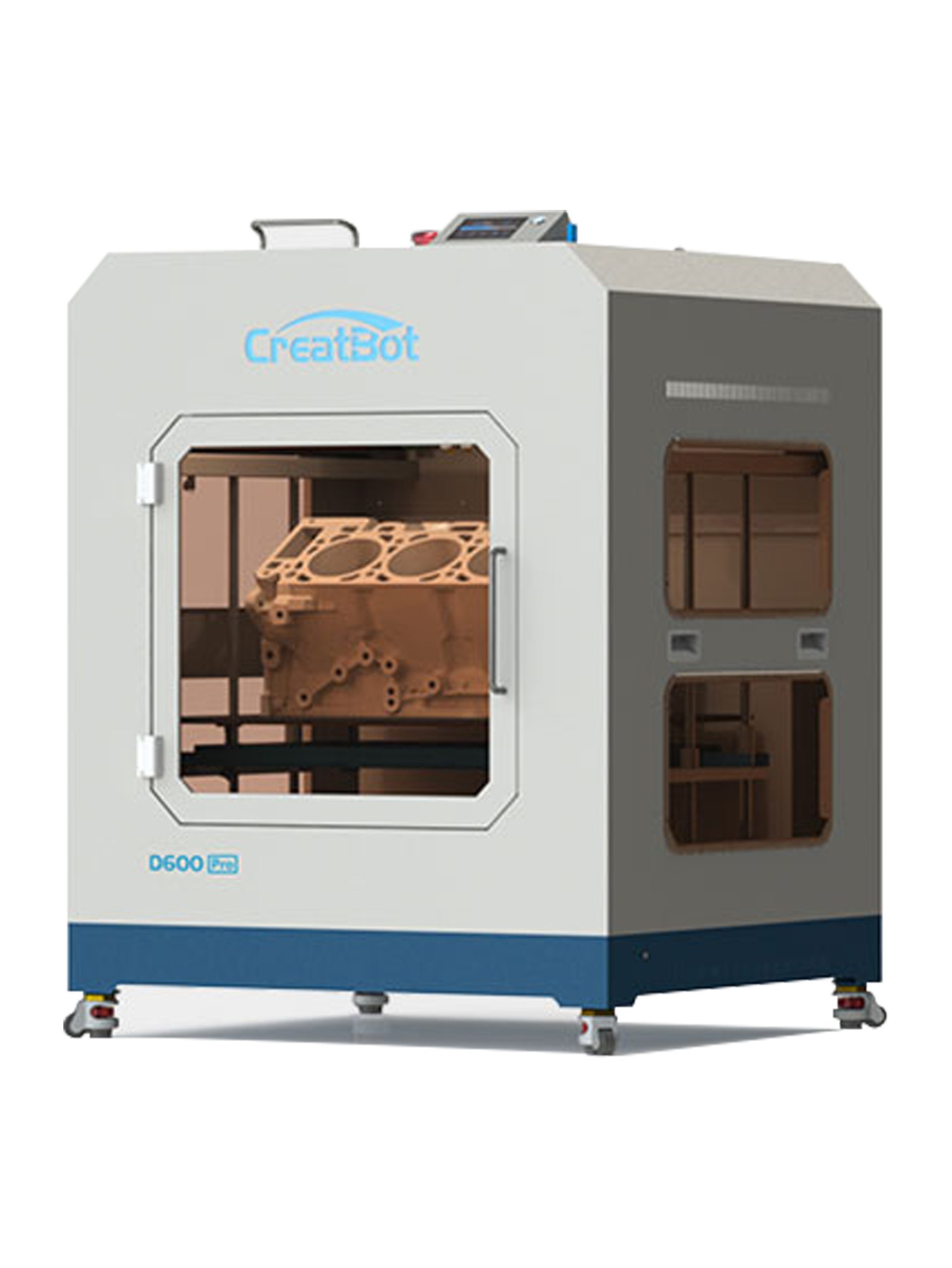

D-600 Pro is the Most Advanced Big-Scale Industrial 3D Printer.
D-600 Pro High Temp Industrial 3D Printer with large print size 600*600*600mm.
Main Features Of Printer:-
Nozzle Temperature Up To 420 ℃
D-600 Pro High Temp Industrial 3D Printer equiped with the 4th generation 1.75mm dual extruders and hotends. The left extruder equipped with 260°C hotend, It is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc. The right extruder 420°C hotend is made of martensite steel, which is able to print high performance materials.
High Precision
We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block.
Servo Motors With Gear Reduction
High Accuracy: closed-loop control of position, speed and torque; overcome the problem of lossing step. No layer shift.
Good high-speed performance.
Fully Enclosed Chamber
The whole-steel body not only ensure the stability when printing but also greatly extend the usage period. The fully enclosed chamber can block all external interference.
Accurate Linear Guide Rail
The accurate linear rail structure can print models in accuracy high reach to 4~5 times higher than the other ordinary optical axis printers in mass market.
Hot Air Chamber 70°C
Hot air chamber can provide constant room temperature so that model won’t deform when printing.
Easy Touch Screen
D-600 Pro Industrial 3D Printer has a 4.3″ touch screen, more easy to operate. We also provide One-Key to preheat, print, home as well as other shortcut keys.
Filaments Drying Room
The function is able to dry filaments like Nylon,PC,ABS, which with high water absorption, 45°C and 65°C chamber temperature available.
Efficient Platform
The platform surface is attached with the 3D printing special stickers, and the printer has vertical thermal conductivity so that can support high thermal efficiency.

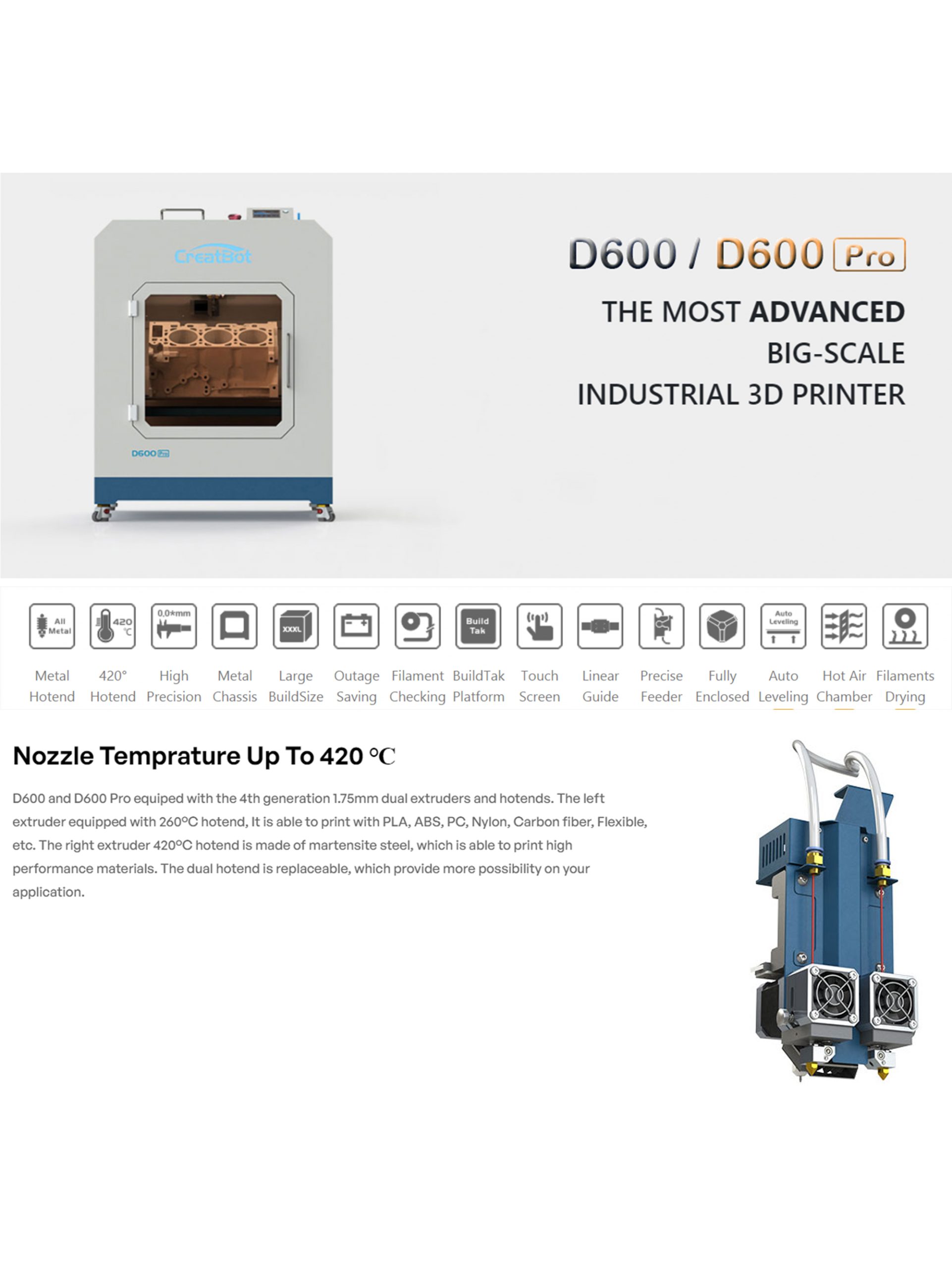

Nozzle Temprature Up To 420 ℃
D600 and D600 Pro equiped with the 4th generation 1.75mm dual extruders and hotends. The left extruder equipped with 260°C hotend, It is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc. The right extruder 420°C hotend is made of martensite steel, which is able to print high performance materials. The dual hotend is replaceable, which provide more possibility on your application.

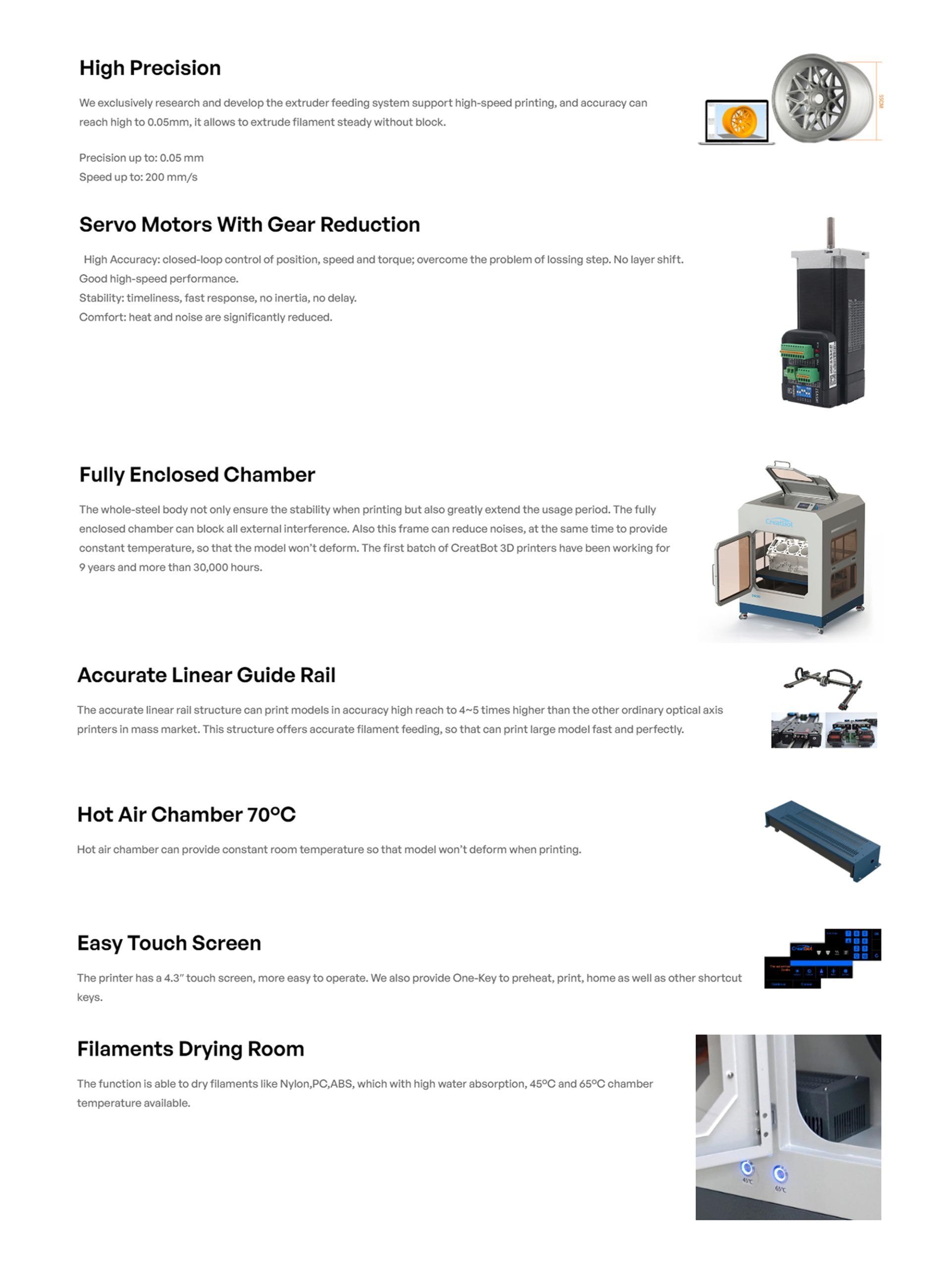

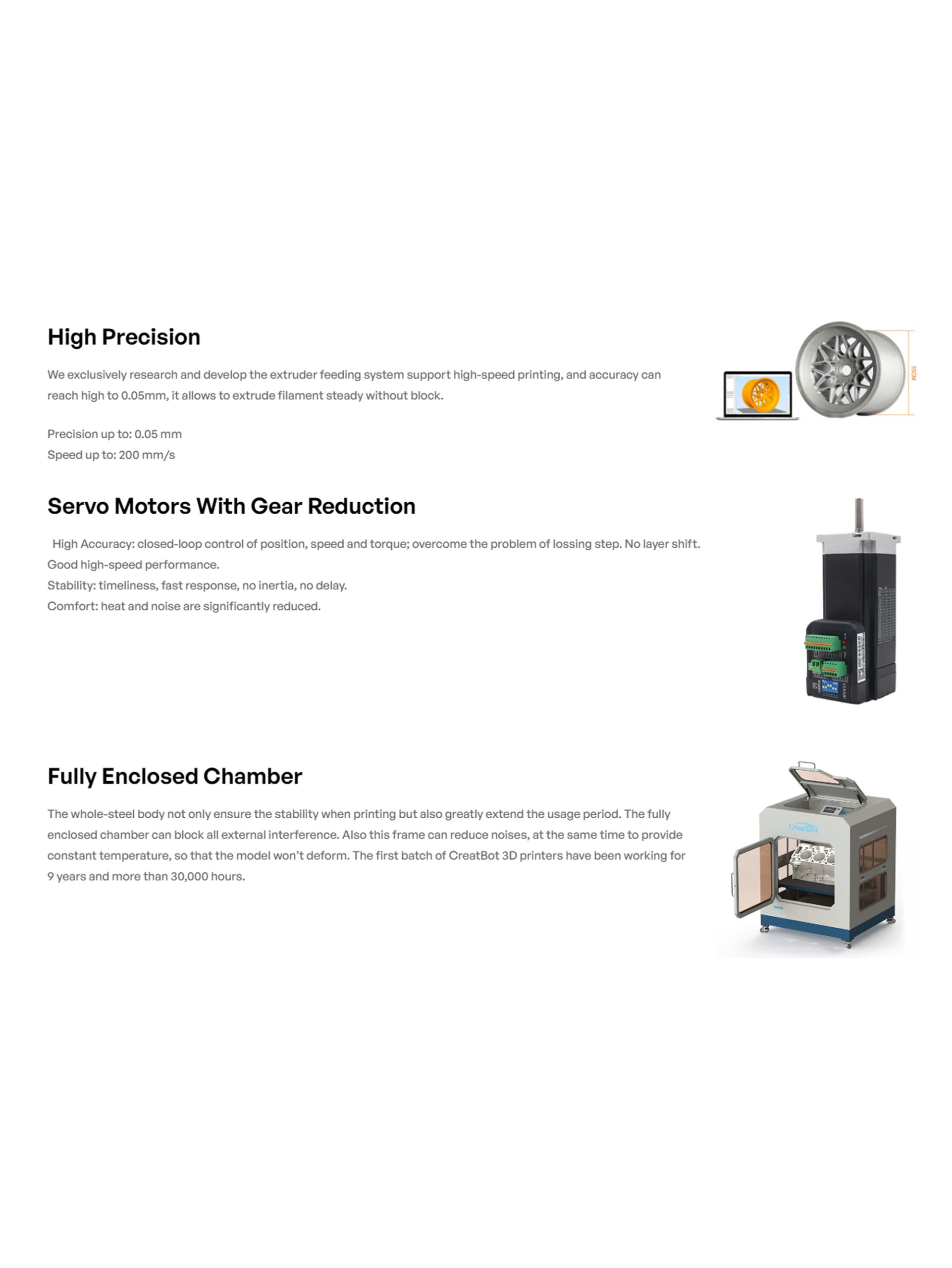

High Precision
We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block.
Precision up to: 0.05 mm
Speed up to: 200 mm/s
Servo Motors With Gear Reduction
High Accuracy: closed-loop control of position, speed and torque; overcome the problem of lossing step. No layer shift.
Good high-speed performance.
Stability: timeliness, fast response, no inertia, no delay.
Comfort: heat and noise are significantly reduced.
Fully Enclosed Chamber
The whole-steel body not only ensure the stability when printing but also greatly extend the usage period. The fully enclosed chamber can block all external interference. Also this frame can reduce noises, at the same time to provide constant temperature, so that the model won’t deform. The first batch of CreatBot 3D printers have been working for 9 years and more than 30,000 hours.
Accurate Linear Guide Rail
The accurate linear rail structure can print models in accuracy high reach to 4~5 times higher than the other ordinary optical axis printers in mass market. This structure offers accurate filament feeding, so that can print large model fast and perfectly.
Hot Air Chamber 70°C
Hot air chamber can provide constant room temperature so that model won’t deform when printing.
Easy Touch Screen
The printer has a 4.3″ touch screen, more easy to operate. We also provide One-Key to preheat, print, home as well as other shortcut keys.
Filaments Drying Room
The function is able to dry filaments like Nylon,PC,ABS, which with high water absorption, 45°C and 65°C chamber temperature available.
HEPA Air Filtration
The air filter system can adsorb impurities and gases that generated by printing special filament, more safe and environmental protection which is more suitable for house, school, office space.
Outage Restored & Filament Detection
The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power’s on.
The printer will avoid invalid printing by stoping print and warning when filament runs out.
Outage Restored
Filament Detection
Efficient Platform
The platform surface is attached with the 3D printing special stickers, and the printer has vertical thermal conductivity so that can support high thermal efficiency. You can set the parameters to turn off the hot bed automatically after the specified number of layers.
Auto Leveling Platform
Use of 25 points through the BL-Touch probe to save the level of platform flatness data at the initial, through the Z axis intelligent compensation table height in the printing process to achieve fully automatic leveling.
Technical Specs
| Printing | |
| Print Technology | Fused Deposition Modeling（FDM） |
| Build Volume | 600*600*600 mm |
| Number of Nozzles | Double |
| Resolution | 0.05 mm |
| Layer Resolution | 0.05 mm |
| Filament Diameter | 1.75 mm |
| Filament Compatibility | PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, etc. |
| Nozzle Diameter | 0.4mm (0.3 0.5 0.6 0.8 1.0mm) |
| Print File Type | STL, OBJ, AMF, Gcode |
| Temperature | |
| Ambient Operating Temperature | 15 ℃~32 ℃ |
| Max. Nozzle Temperature | 420 ℃ |
| Max. Bed Temperature | 100 ℃ |
| Max. Chamber Temperature | 70 ℃ D600 Pro |
| Filaments Drying Temperature | 45 ℃/65 ℃ D600 Pro |
| Mechanical | |
| Construction | Power-Coated Steel, Aluminum Casting for Motion Components, POM |
| Build Plate | Borosilicate glass bed |
| Build Plate Leveling | Factory Leveled, Adjust Manually Automatic D600 Pro |
| Extruder | Directly Drive |
| Stepper Motors | 1.8° Step Angle with 1/16 Micro-stepping |
| X Y Positioning Precision | 5.08 μm |
| Z Positioning Precision | 1.25 μm |
| Speed | |
| Best Printing speed | 45 mm/s |
| Max. Printing speed | 120 mm/s |
| Electrical | ||
| Power Requirements | 100V-110V or 200V-240V / 50-60Hz(D600 ONLY) (Depending on your country’s default voltage) | |
| 200V-240V / 50-60Hz (D600 Pro) | ||
| Screen | 4.3” Touch Screen with Multi-language | |
| Max. Power | 1000W~4000W D600 Pro | |
| Control Chip | ATmega 2560 | |
| Storage Media | USB Disk | |
| Connectivity | USB | |
| Software | |
| Software Bundle | CreatWare, Simplify 3D, Cura, Slice 3r, etc |
| Supported File Types | STL,OBJ,AMF |
| Operating Systems | Win7/8/10, MacOS |
| Special Function | |
| Outage Restored | Save data when power is off |
| Filament Detection | Pause printing when filament run out |
| Automatic Shut-down | Turn off the power automatically when printing is complete |
| Size & Weight | |
| Product Dimensions & Weight | 915*845*1085mm 125kg |
| Packing Size & Weight | 940*1010*1320mm 165kg(Pallet) |
