Creator 4 Series
Accelerate Design Iteration and Productization

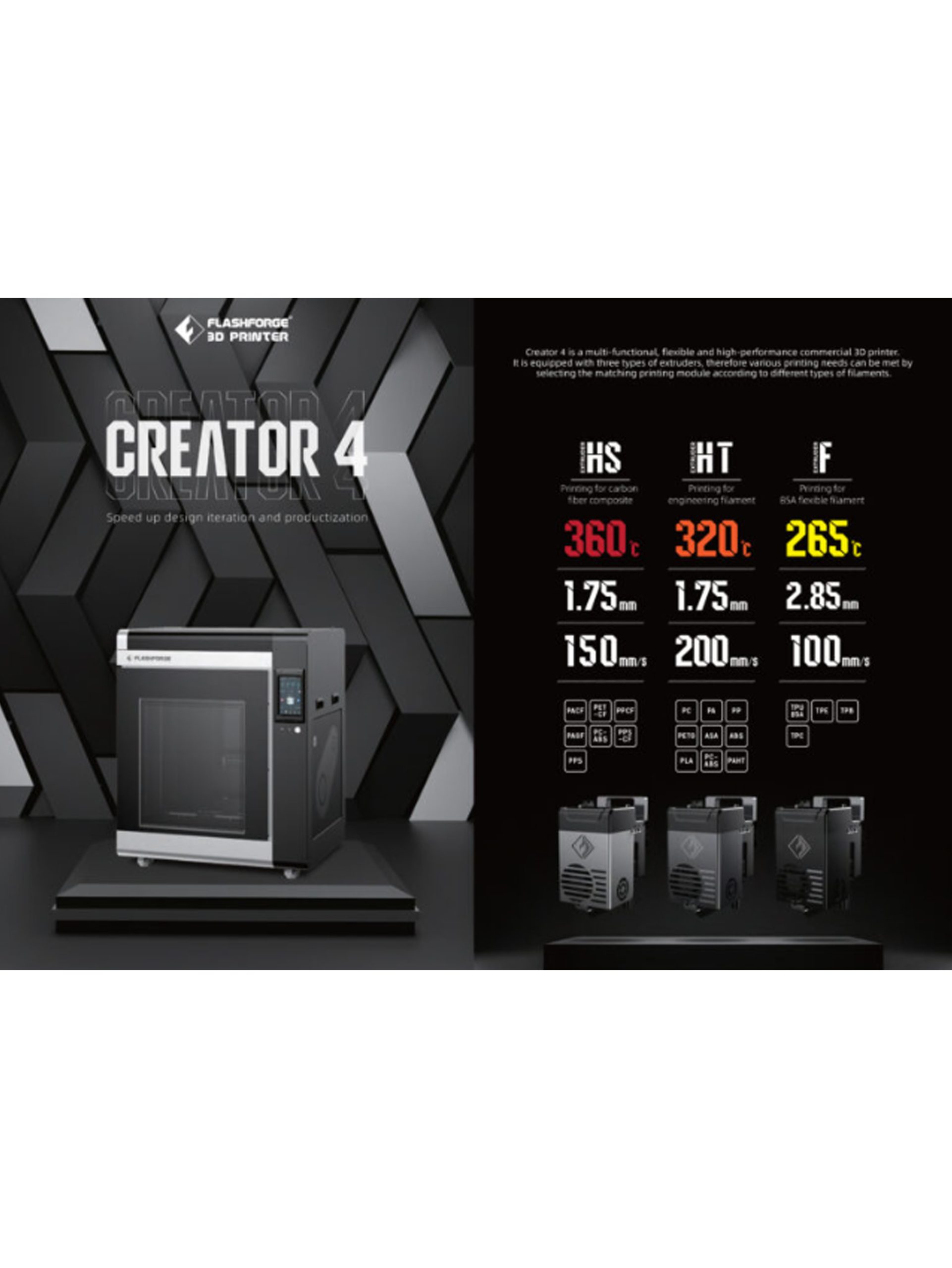

Creator 4 is a multi-functional, flexible and high-performance commercial 3D printer. It is equipped with three types of extruders, therefore various printing needs can be met by selecting the matching printing module according to different types of filaments.

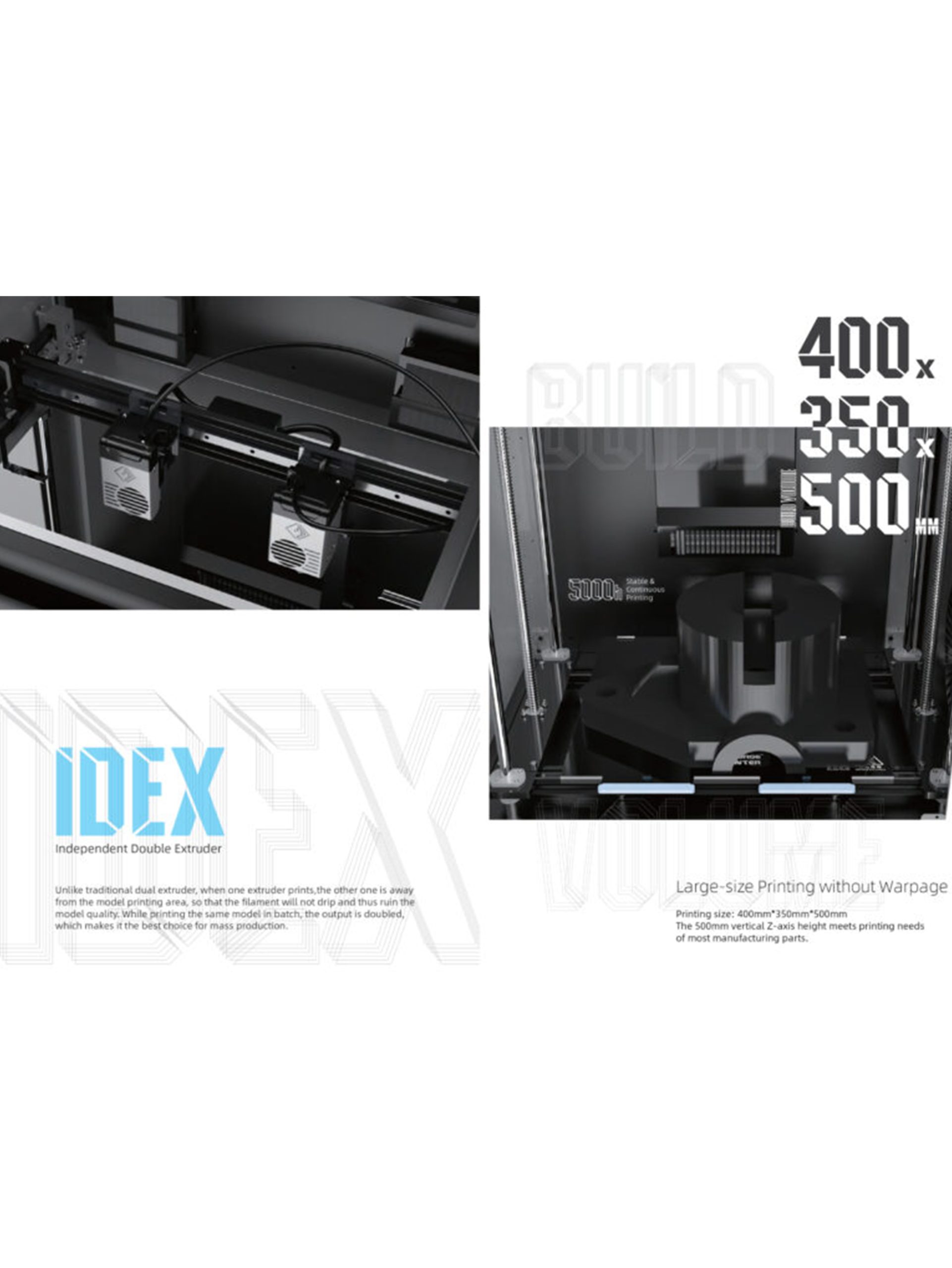

Independent Dual Extruder
Unlike traditional dual extruder, when one extruder prints, the other one is away from the model printing area, so that the filament will not drip and thus ruin the model quality. While printing the same model in batch, the output is doubled, which makes it the best choice for mass production.
Extruder-F
Printing for 85A Flexible Filament Printing Speed 100mm/s Filament Diameter 2.85mm Printing Temperature 265℃ Supported Filament TPU85A / TPE / TPB / TPC
Extruder-HT
Printing for Engineering Filament Printing Speed 200mm/s Filament Diameter 1.75mm Printing Temperature 320℃ Supported Filament PC / PA / PP / PETG / ASA / ABS / PLA / PC-ABS / PAHT
Extruder-HS
Printing for Carbon Fiber Composite Printing Speed 150mm/s Filament Diameter 1.75mm Printing Temperature 360℃ Supported Filament PACF / PET-CF / PP-CF / PA-GF / PC-ABS / PP-GF / PPS-CF / PPS

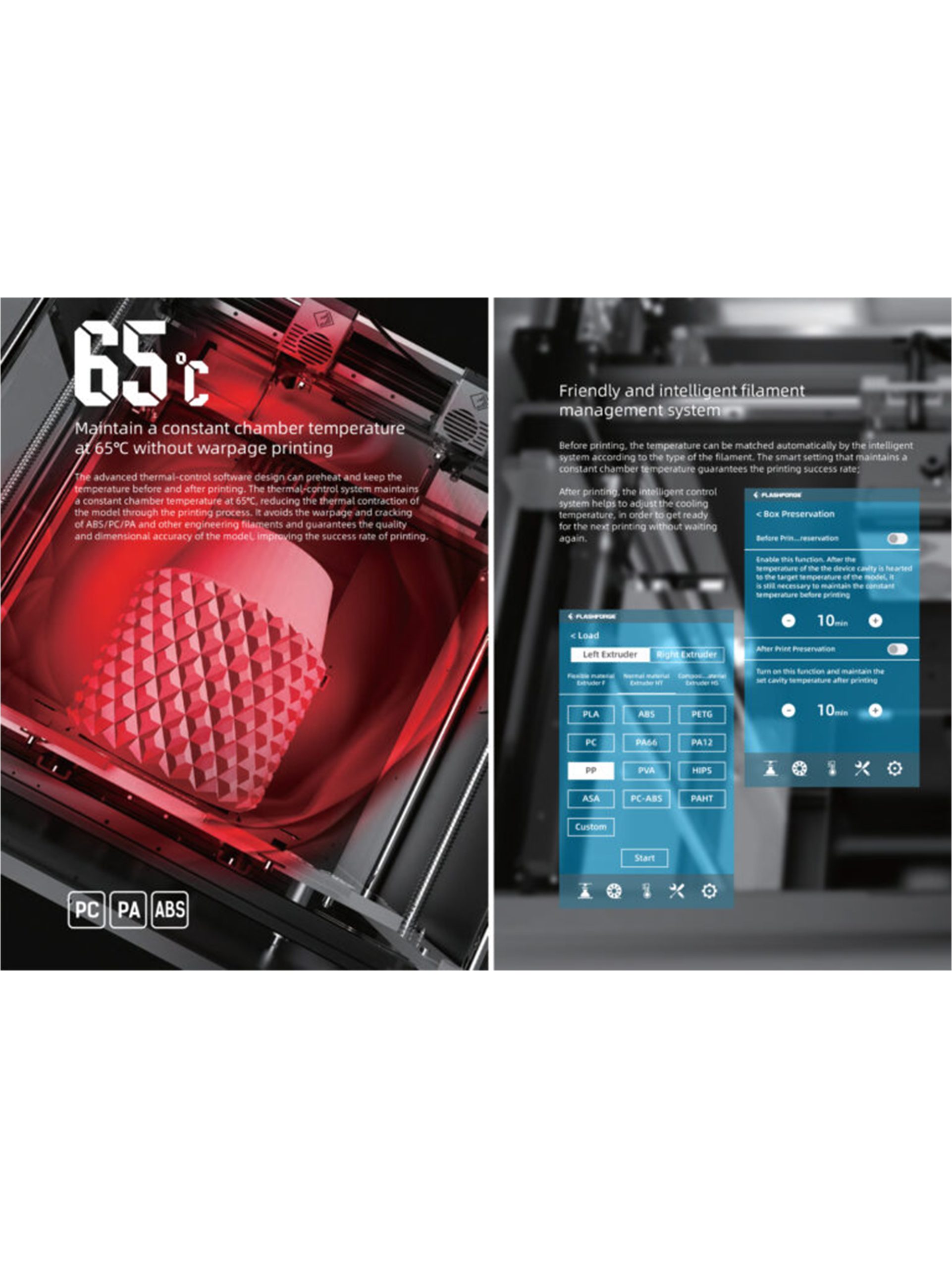

Maintain a constant chamber temperature at 65℃ without warpage printing
The advanced thermal-control software design can preheat and keep the temperature before and after printing. The thermal-control system maintains a constant chamber temperature at 65℃, reducing the thermal contraction of the model through the printing process. It avoids the warpage and cracking of ABS/PC/PA and other engineering filaments and guarantees the quality and dimensional accuracy of the model, improving the success rate of printing.
Large Build Volume
- Printing size: 400mm*350mm*500mm;
- The 500mm vertical Z-axis height meets the printing needs of most manufacturing parts.
High Precision
- The high-precision linear guides on the XY axes ensure the printing accuracy of the XY axes;
- The brand new S-type motion control achieves smoother start and stop, more accurate positioning, and superior printed model accuracy;
- The stainless steel body guarantees the stability of the printer, reduces printing jitter, and ensures sustainable and efficient operation.
