Bambu Lab PPS-CF 1.75mm 3D Printer Filament Black (500g)

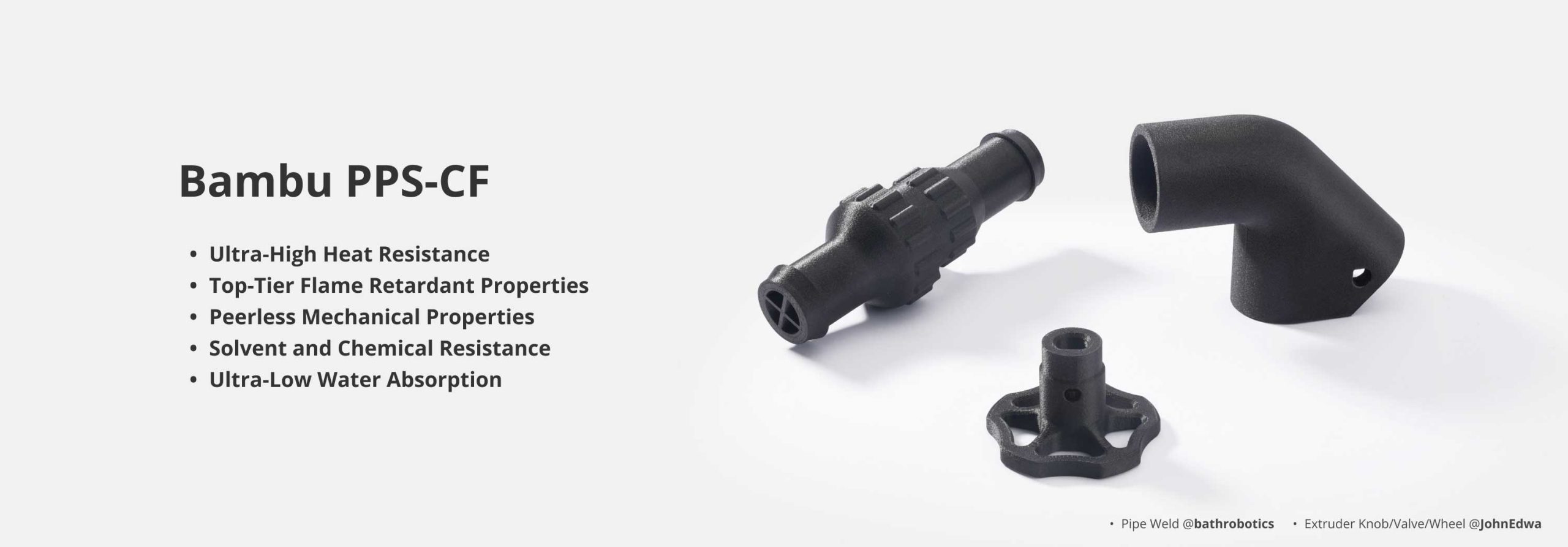

Bambu Lab PPS-CF: A High-Performance Composite Material

Bambu Lab PPS-CF is a composite material with reusable spool made from carbon fiber-reinforced polyphenylene sulfide. This combination of PPS resin and carbon fiber provides Bambu PPS-CF with exceptional properties. These include outstanding resistance to solvents, corrosion, heat, and flames. Moreover, it offers superior strength, stiffness, and dimensional stability. These characteristics make it a specialized engineering plastic, ideal for unique and challenging applications.

Ultra-High Heat Resistance

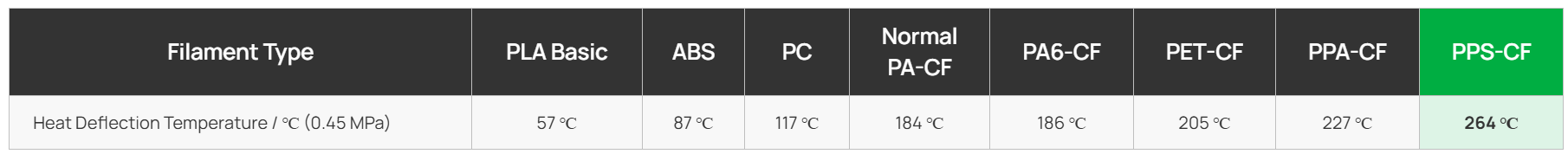

Bambu Lab PPS-CF boasts a heat deflection temperature of up to 264°C under 0.45 MPa. It can continuously operate at temperatures exceeding 200°C. This performance outshines normal PA-CF materials, which have maximum temperatures of around 190°C and 120°C. Bambu Lab PPS-CF ensures excellent creep resistance, making it perfect for demanding industrial environments.

Superior Flame Retardancy

Bambu Lab PPS-CF achieves a UL-94 V-0 flame retardant rating. This offers superior safety and reliability in critical areas like electronics and automotive components. Bambu Lab PPS-CF with reusable spool is built for long-lasting durability, providing peace of mind even in the most challenging environments.

Unmatched Mechanical Properties

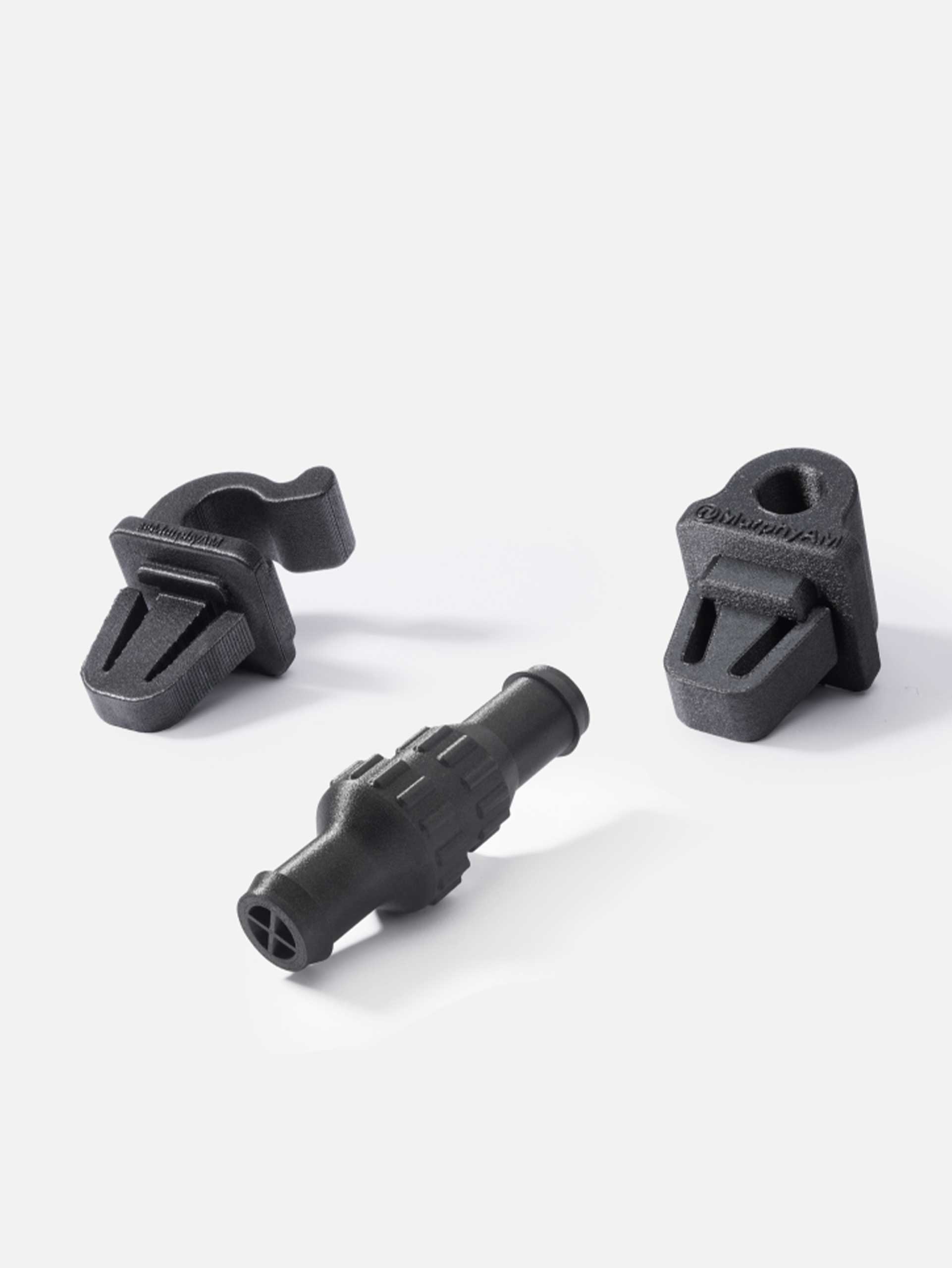

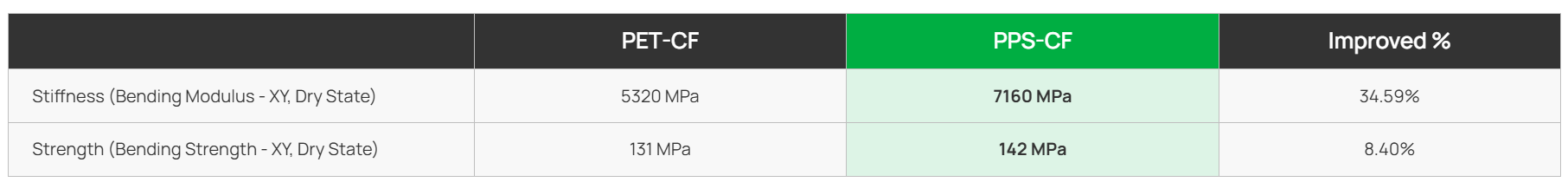

By combining the stiffness of PPS polymers with the reinforcing power of carbon fiber, Bambu PPS-CF offers exceptional stiffness, bending strength, and tensile strength. It has superior dimensional stability and resists warping. These properties ensure large-scale prints maintain precision, making it ideal for high-precision applications.

Solvent and Chemical Resistance

Bambu PPS-CF offers remarkable solvent and chemical resistance, second only to PTFE (Teflon). It is virtually insoluble in any solvent below 200°C. It also shows exceptional resistance to acids, bases, and salts under normal conditions. This makes Bambu Lab PPS-CF an excellent choice for environments requiring strong chemical stability.

Ultra-Low Water Absorption

With a moisture absorption rate of just 0.05%, Bambu PPS-CF maintains its mechanical and thermal properties in humid conditions. Unlike standard PA-CF, which can soften and degrade when exposed to moisture, Bambu Lab PPS-CF remains strong and durable. This makes it a superior option for applications where moisture resistance is crucial.

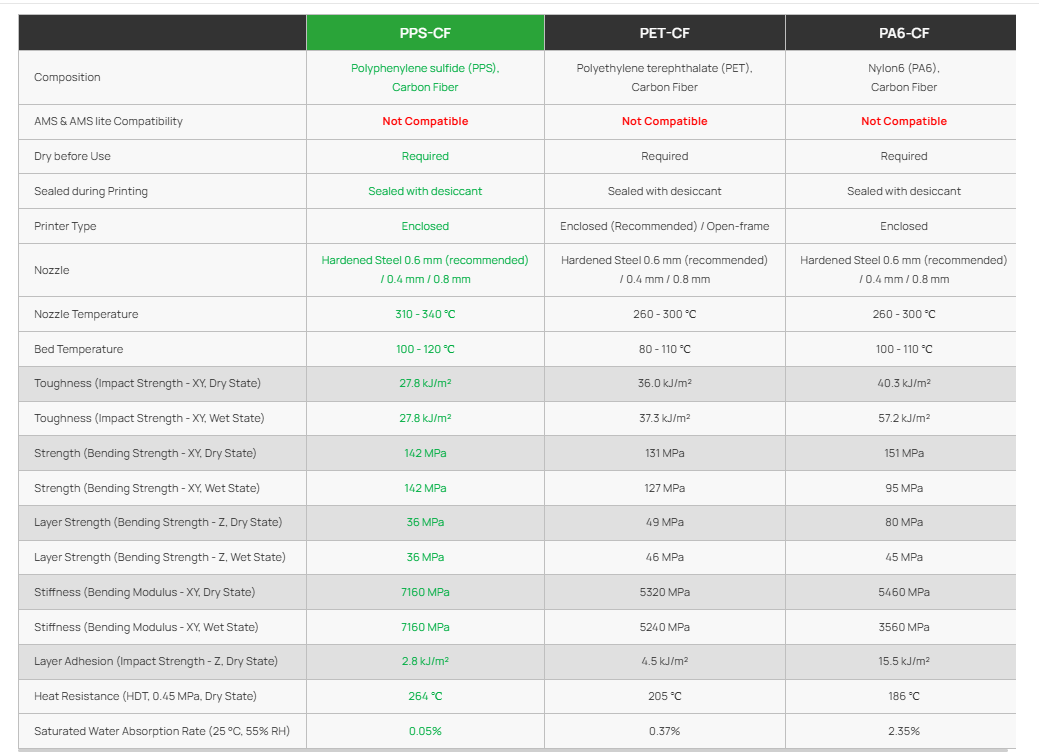

Parameter Comparision

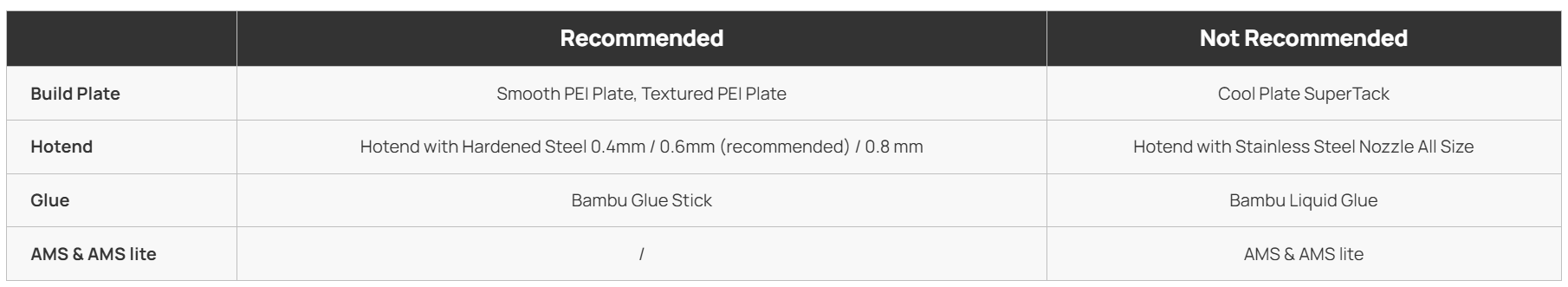

Accessory Compatibility

Downloads

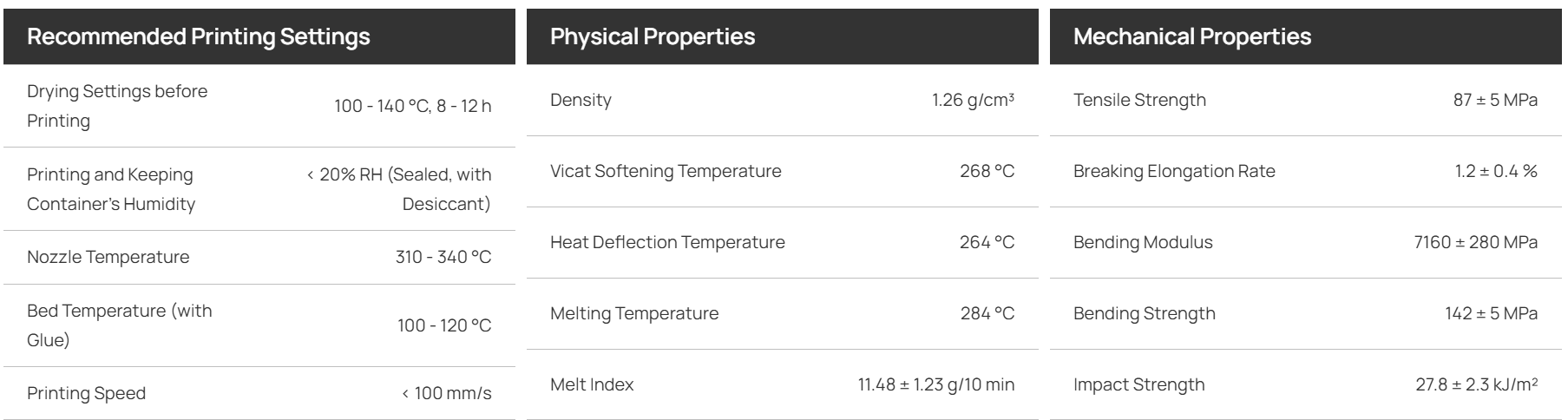

📄 Filament Technical Data Sheet

Explore detailed specifications and technical properties of the Bambu Lab PPA-CF Filament.
👉 https://store.bblcdn.com/26f4f40359484040a8660c9150a90fc0.pdf

📄 Filament Material Safety Data Sheet

Access important safety guidelines and handling instructions for safe use of the filament.
👉 https://store.bblcdn.com/472406dd0e774eababfe86838d1f37bf.pdf

📄 Filament RoHS Compliance

Verify the filament’s RoHS compliance and environmental safety details.
👉 https://store.bblcdn.com/3f42b5fbe07140a48b6ce699494d423d.pdf

📄 UL 94 Test Report

👉 https://store.bblcdn.com/s4/default/324268b60e52447c8ffe46893d9ab50c.pdf

Printing Tips

Bambu PPS-CF Printing Guidelines:

• Nozzle Temperature: Recommended range is 310 to 340°C.
• Chamber Temperature: Recommended range is 60 to 90°C.
• Tip: Using higher values within these ranges can enhance the mechanical properties of the printed parts, especially in the Z-direction.

Drying Recommendations:

• Drying Temperature:

In a blast drying oven: 100°C to 140°C for 8 to 12 hours.

On an X1 printer’s heatbed: 110°C to 120°C for 10 to 12 hours (less effective than a blast drying oven).

• Important Note: Higher temperatures within the drying range yield better results, but do not exceed 160°C to avoid damaging the spool.
• Additional Information: For more details, refer to Printing tips for Engineering materials on WIKI.

Storage Tips:

• Storage Condition: To prevent the filament from absorbing moisture, use an airtight storage container with desiccant during printing.
• For Further Details: Please refer to Printing tips for Engineering materials on WIKI.

Annealing Prints:

• If you need to anneal the prints, please refer to the Technical Data Sheet (TDS) and the WIKI section Work After Printing Finished.

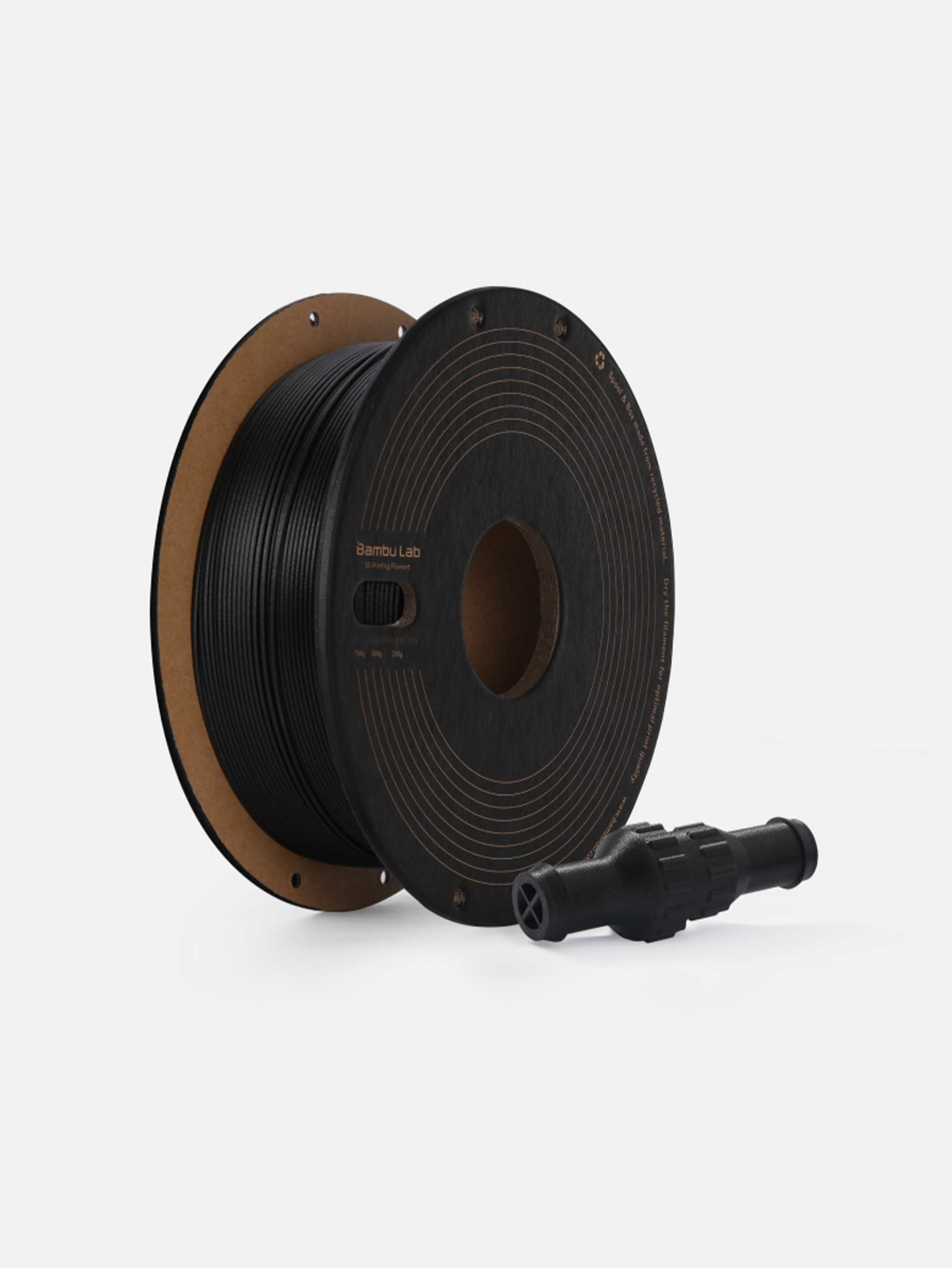

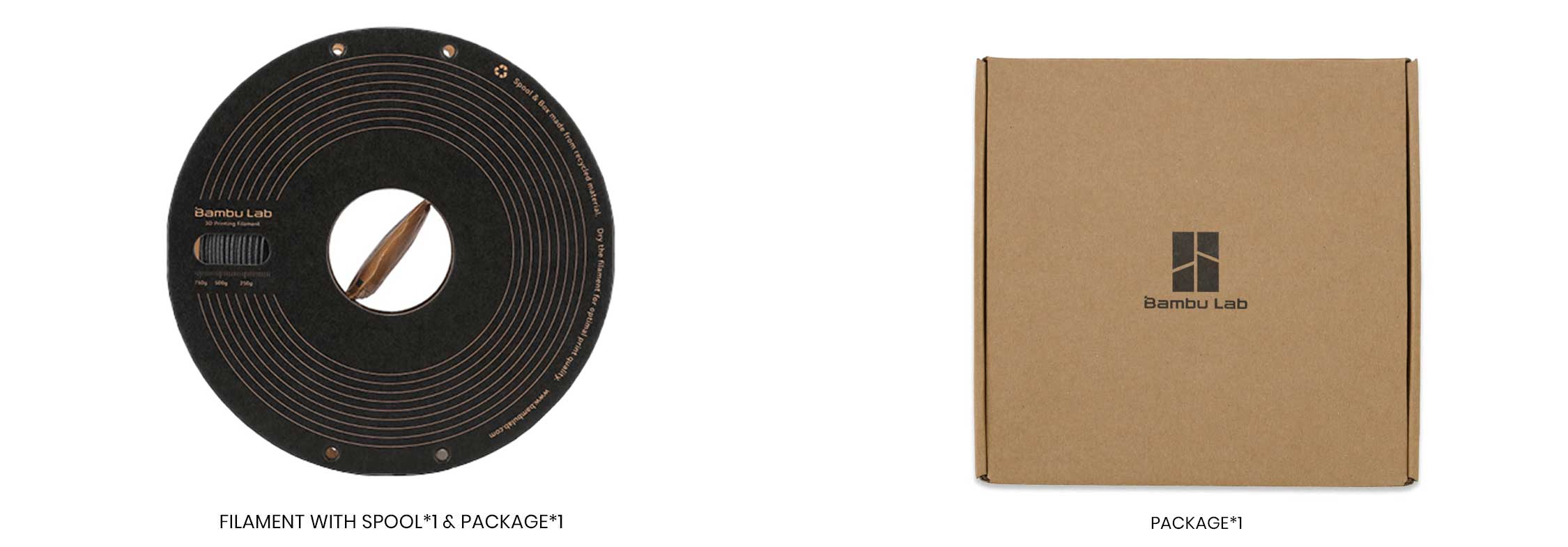

What’s in the Box?

From Bambu PPS-CF to top-tier high-performance 3D printing materials, explore filaments engineered for extreme heat resistance, chemical stability, and unmatched mechanical strength. Perfect for aerospace parts, automotive components, and demanding industrial applications, PPS-CF delivers professional-grade reliability you can count on.
👉 Discover Bambu Lab PPS-CF filament here: https://wol3d.com/product-category/filaments/3dfilamentmanufacturer/
