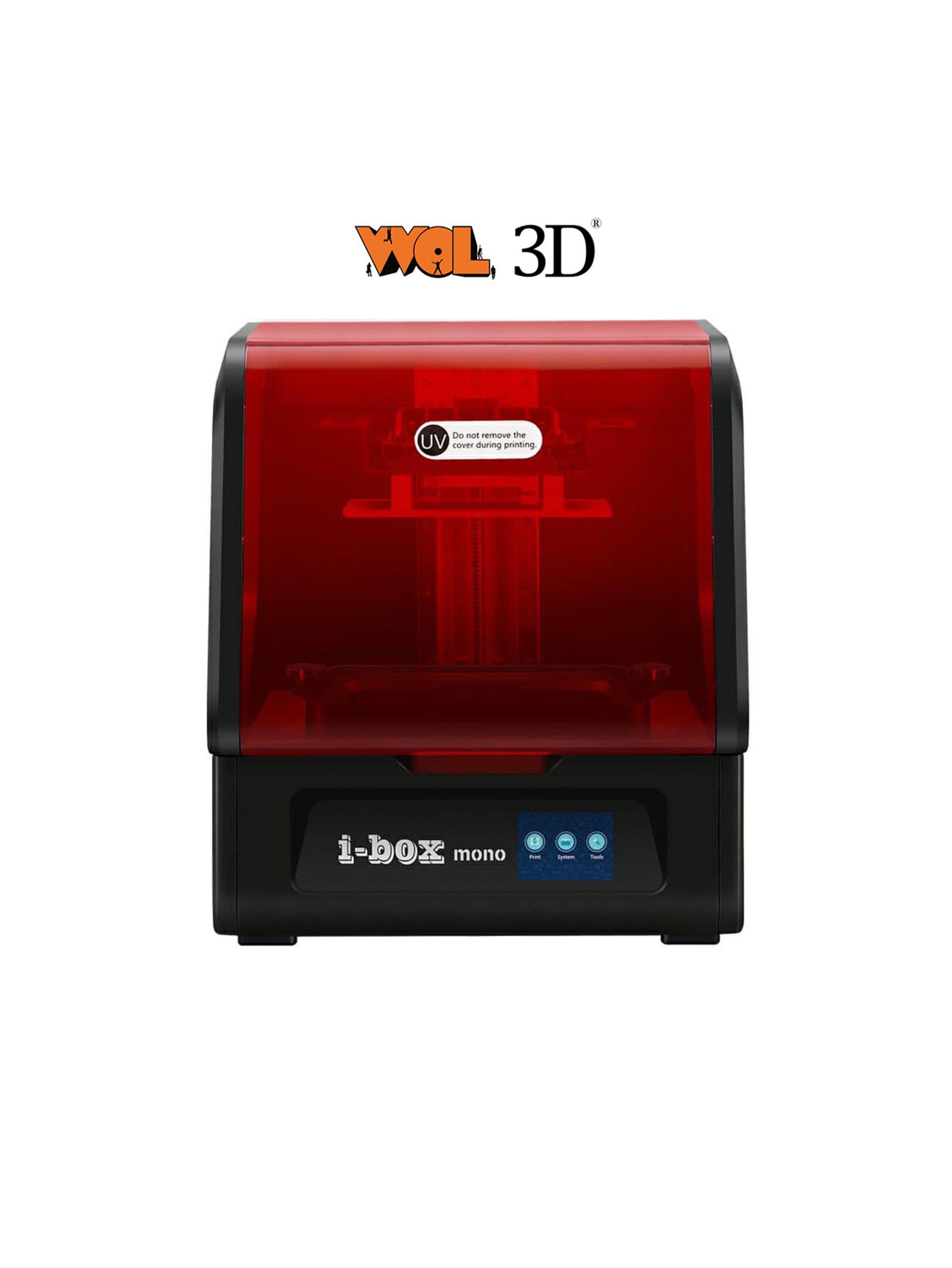

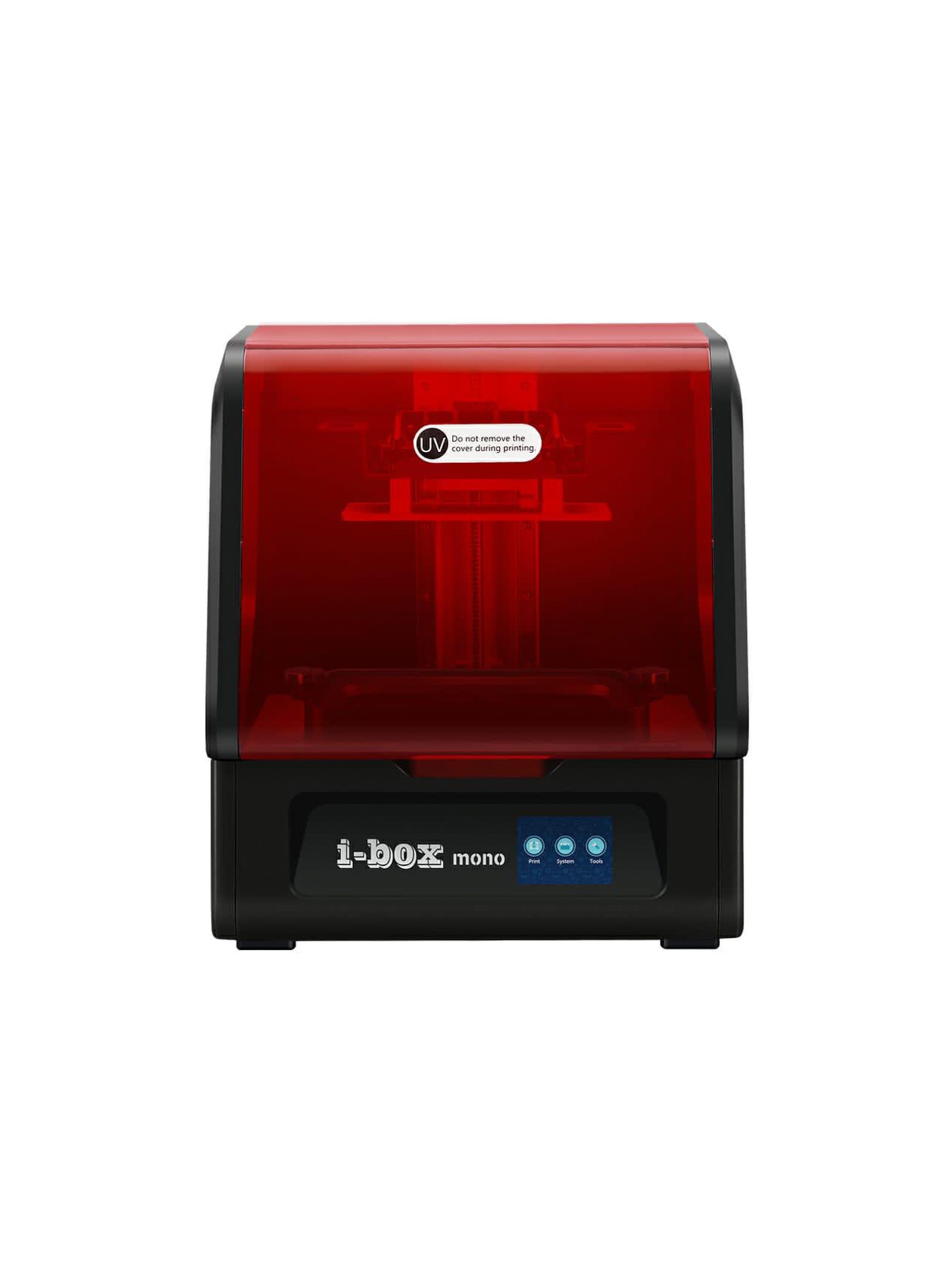

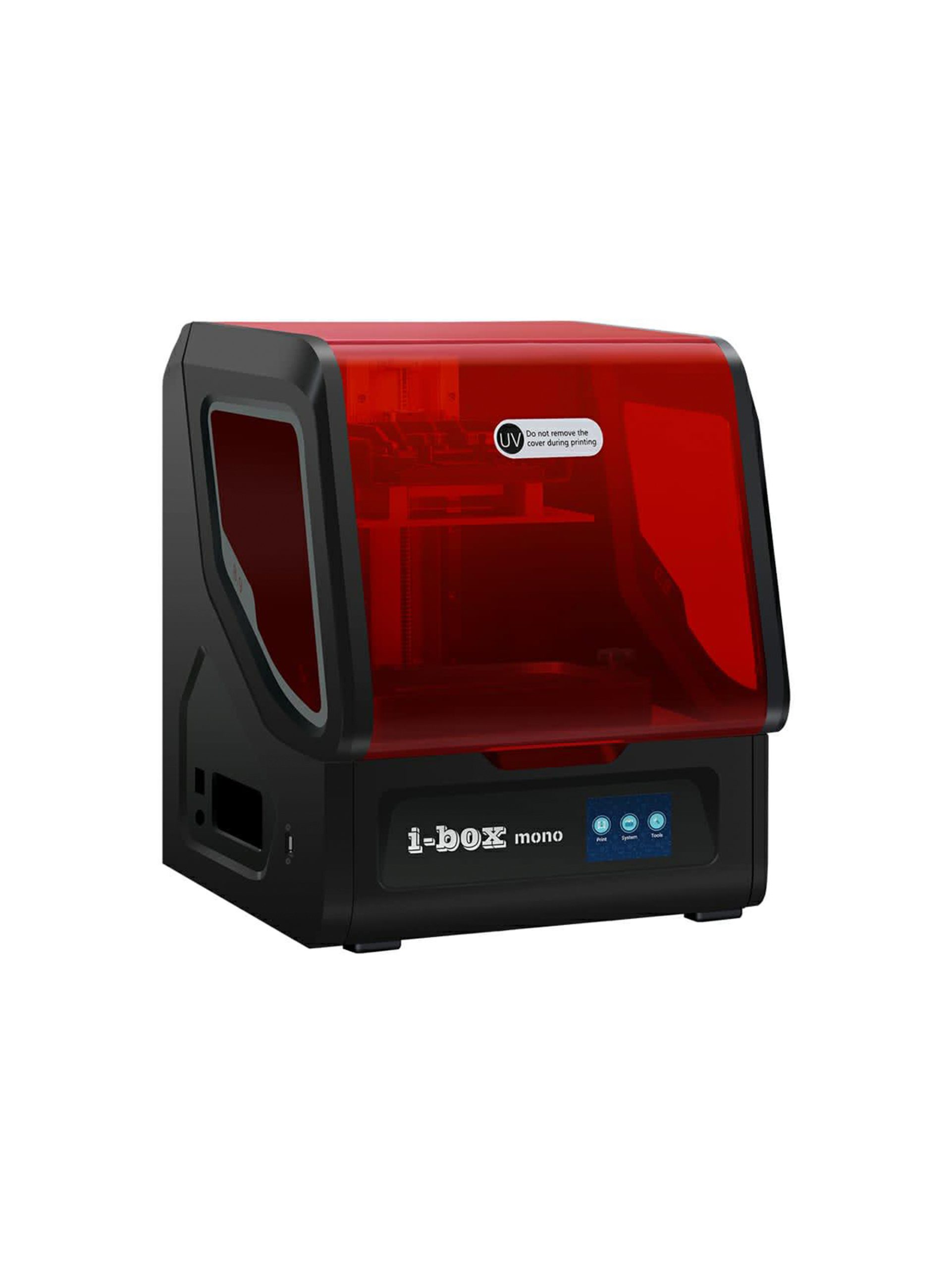

I-box Mono – Commercial Grade LCD Printer

0 Reviews Write a review
Product codei-box mono

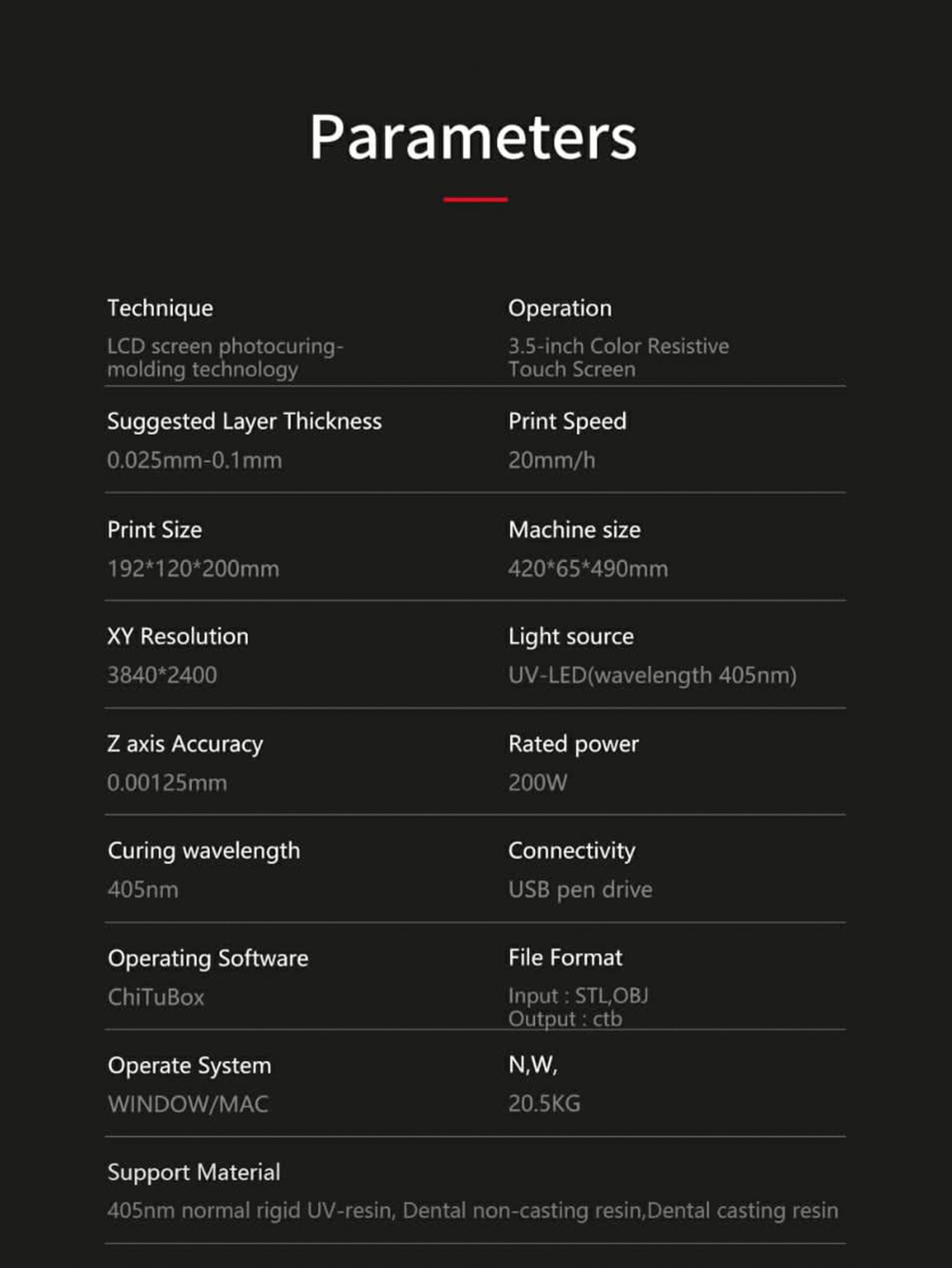

Features: Large size resin 3d printer
Plate Type: LCD PRINTER
Voltage:110-220V
Forming size:7.55″x5.11″x7.87″ (192*120*200mm)
Light source: UV LED 405nm
Printing Speed: 20mm/h
Interface Type: USB pen drive
File Format: STL,OBJ

175,000

MRP is inclusive of all taxes.

Product is out of stock

Description

Commercial Grade LCD Printer – i-box mono is suitable for the production of models in architecture, for jewelry, medical accessories, figures and much more.

8.9 inch (22.6 cm) 4K monochrome LCD

An 8.9 inch LCD display with 4K resolution enables larger prints, more details and excellent accuracy.

Fast printing speed

The exposure speed of the i-Box Mono is only approx. 1.5 – 2 seconds, the maximum printing speed is 60 mm / h. This makes the i-Box Mono three times faster than the s-Box.

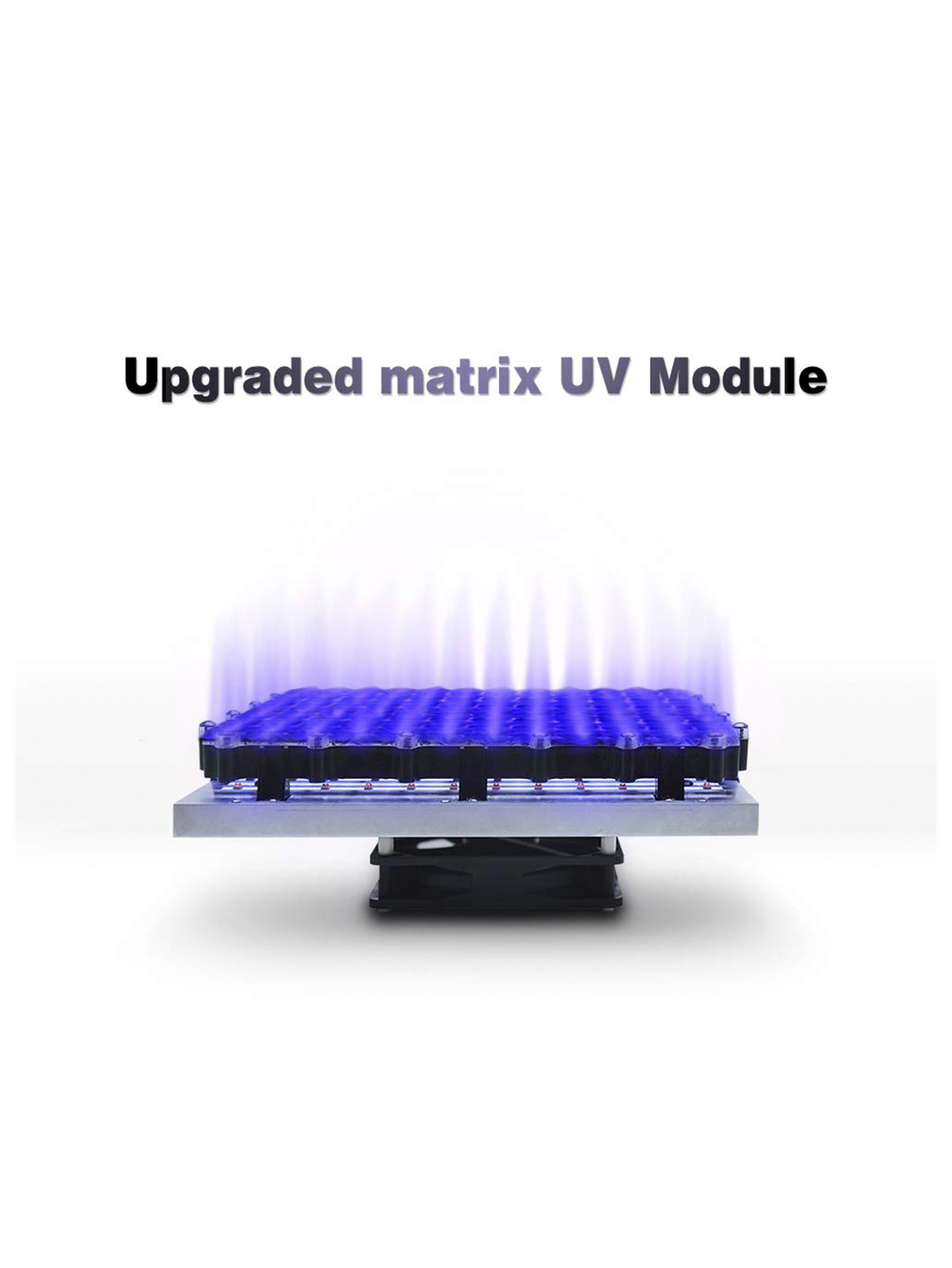

New matrix UV light source

High-quality quartz lamps and a new matrix design ensure a more even supply of UV light. The 4K monochrome LCD delivers excellent prints.

Improved resin tank

The 3D printer contains a newly developed aluminum container that has been optimized for the latest generation of FEP films. The redesigned structure doubles the life of the FEP film.

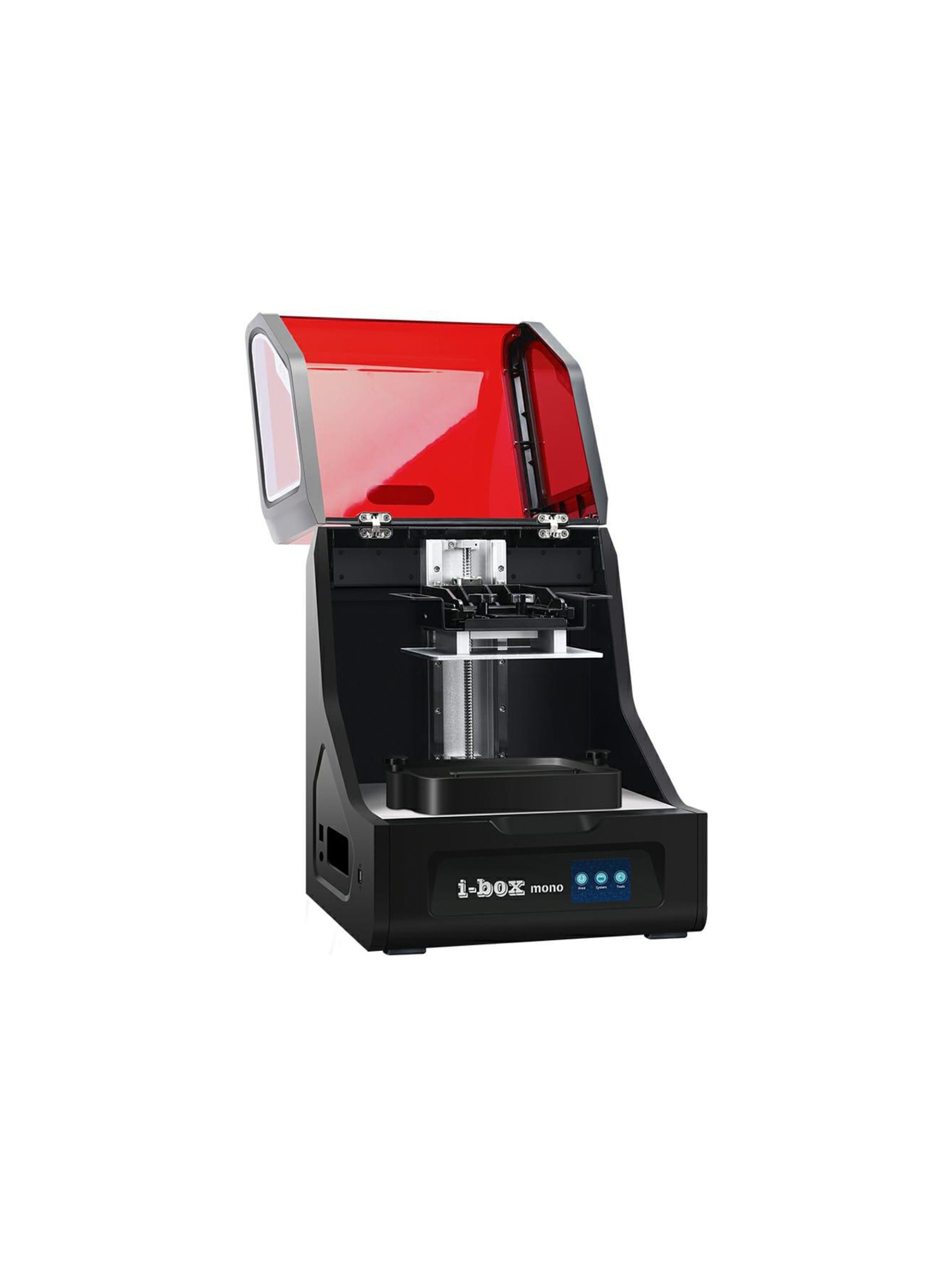

Stronger structure

The stronger structure uses dual guide rails and the lift is provided with high accuracy ball screws. The accuracy of the Z-axis can thus reach 0.00125 mm.

Quiet operation

The Z-axis motor of the i-Box Mono is equipped with a TMC2209 chip. This makes printing very quiet and pleasant.

Latest software

The printer is compatible with the latest Chitubox software version 1.65, which is smart and easy to use.

Big touch screen

A 4.3 inch high-resolution touchscreen can be operated in English and Chinese and provides the required real-time print data.

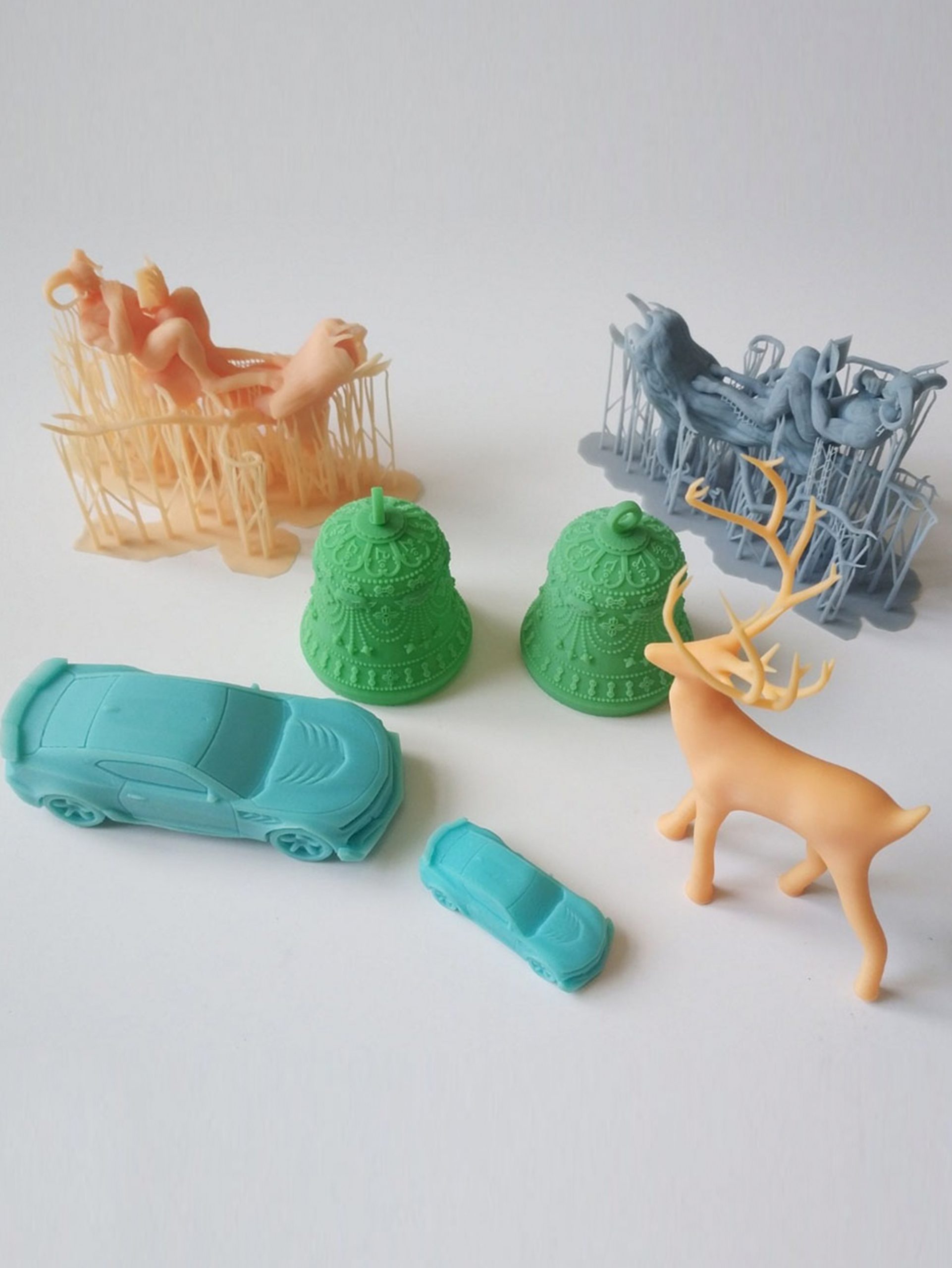

Applications of the 3D printer

  • Architecture

  • Medicine

  • Education

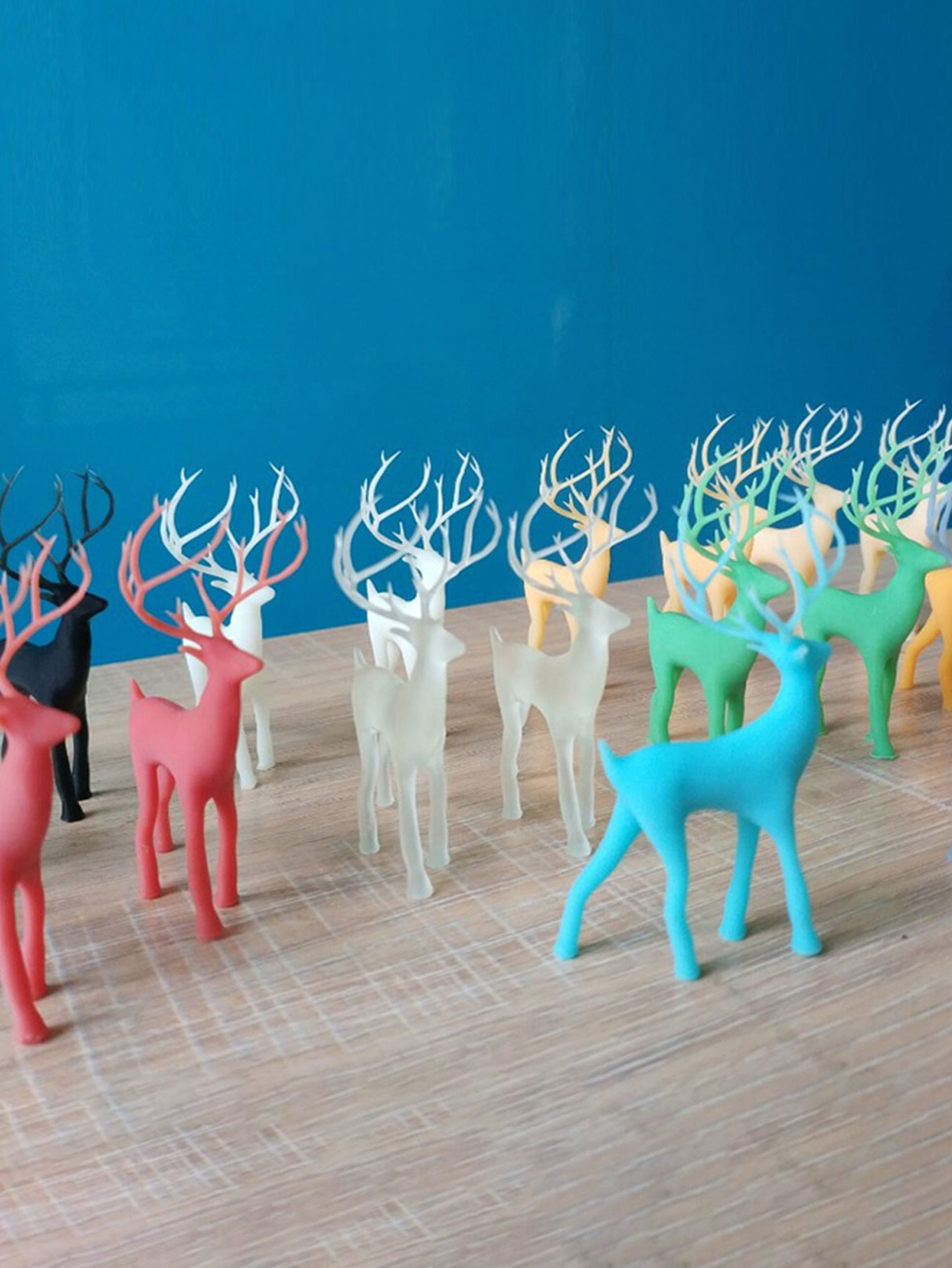

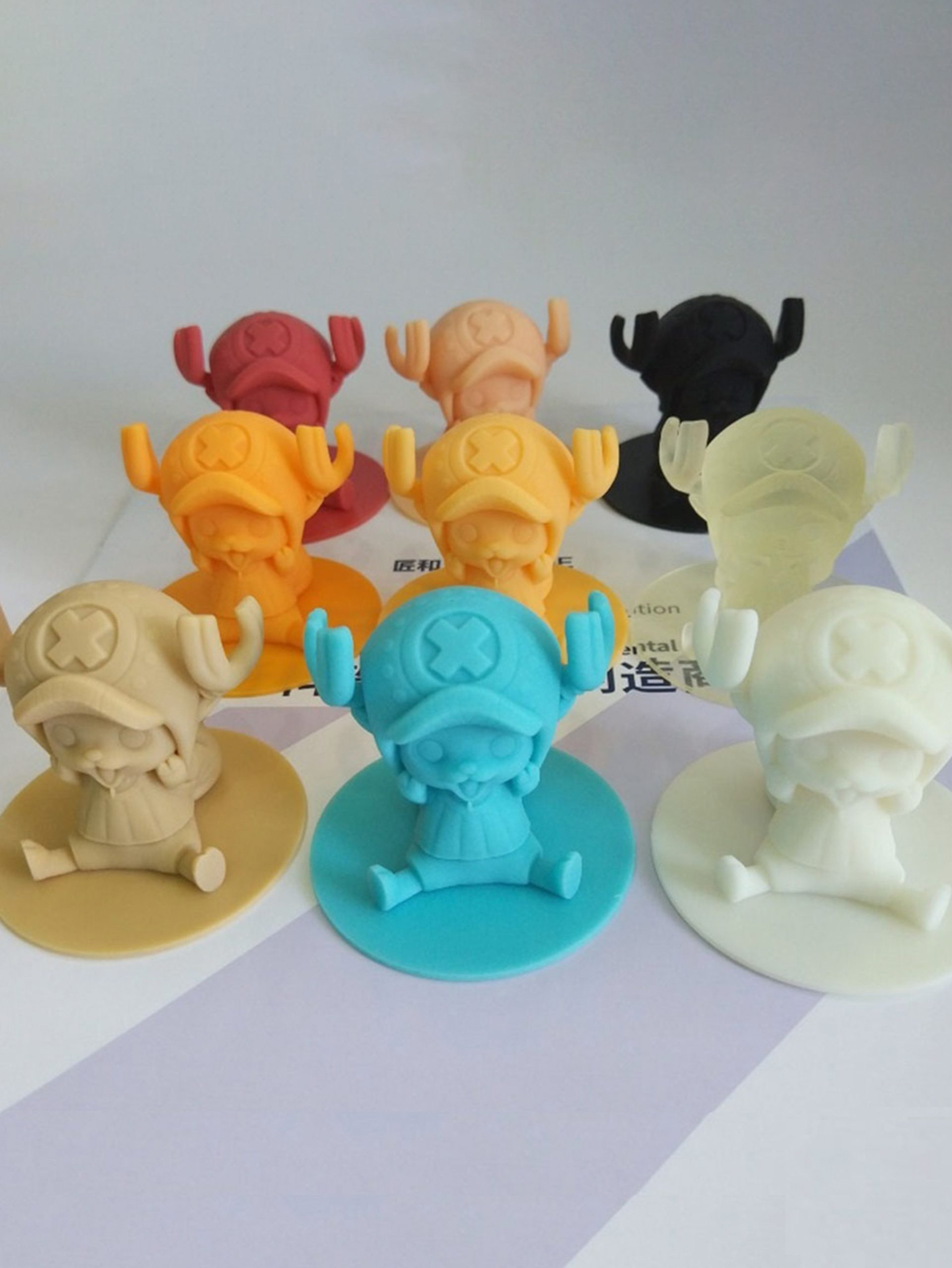

  • Figures / models

  • Jewellery

  • Design

Contents of delivery

    • 1x i-Box Mono 3D printer

    • 1x resin container

    • 1x printing platform

    • 1x tool kit

    • 1x power cord

    • 1x scraper

    • 1x USB stick

    • 1x screwdriver

    • 1x gloves

    • 1x funnel

    • 1x mask

    • 1x user manual

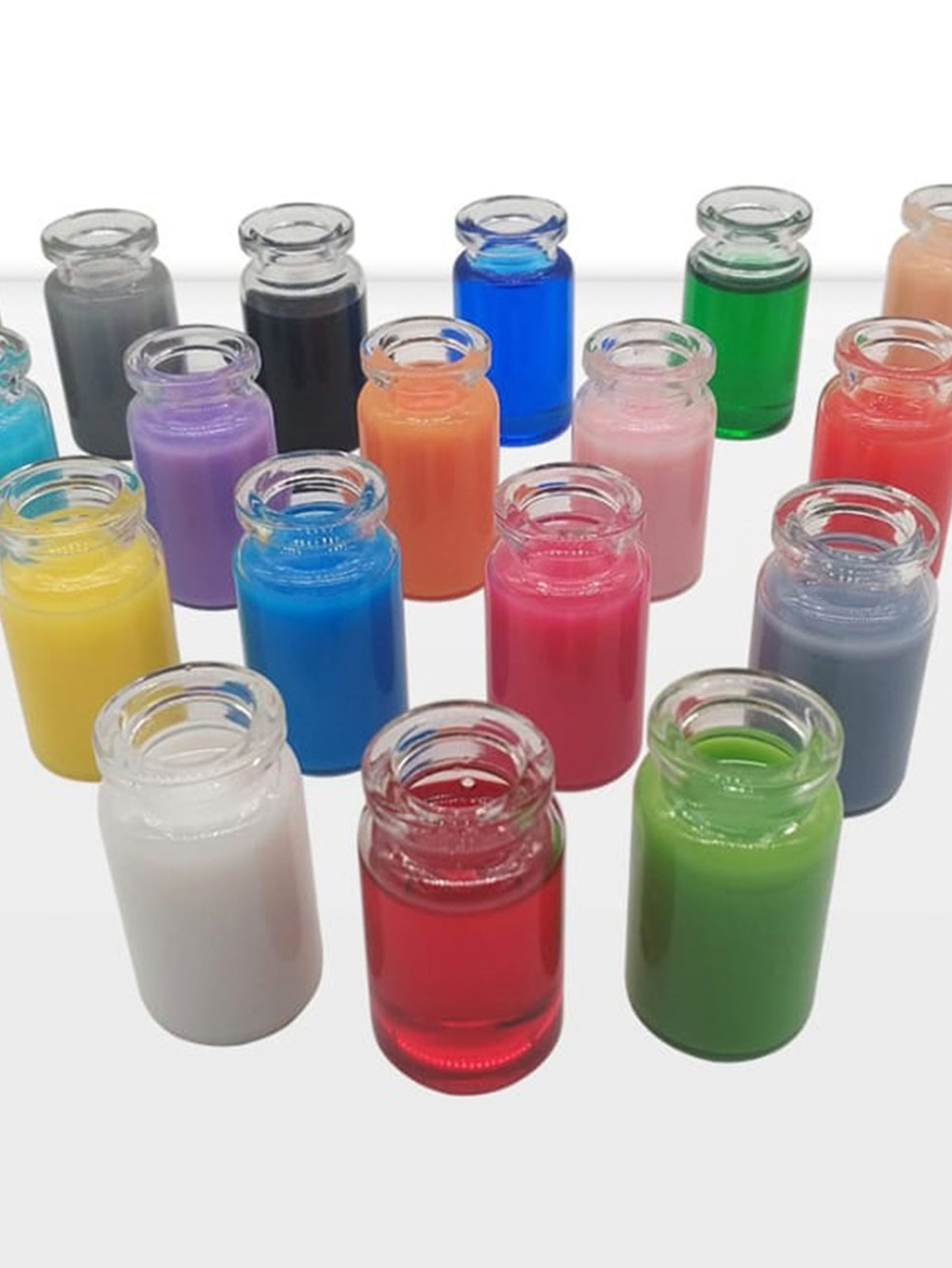

Commercial Grade LCD Printer – i-box mono CAN USE RESIN FROM OUR OWN COLLECTION.

Check our Instagram page for more updates and what products are being created in LCD 3D Printer.

High Precision Screen
Monochrome LCD
Fast Printing Speed
UV Light Source
Stronger Structure
The First intelligent 3D resin printer
The latest slicing software
4.3 inch touch screen

Additional information

Brand

Hi Tech

Industry

Jewellery

Build Volume

192*120*200mm

Print Speed

20mm/h

Reviews

There are no reviews yet.

Be the first to review “I-box Mono – Commercial Grade LCD Printer”

Downloads

No additional downloads available.

Product Information

Manufactured by

WOL3D India Limited

19/B(1), 2Nd Floor, Hakoba Compound , Kalachowky, Mumbai - 400033

Marketed by

WOL3D India Limited

19/B(1), 2Nd Floor, Hakoba Compound , Kalachowky, Mumbai - 400033

Country of Origin

India
