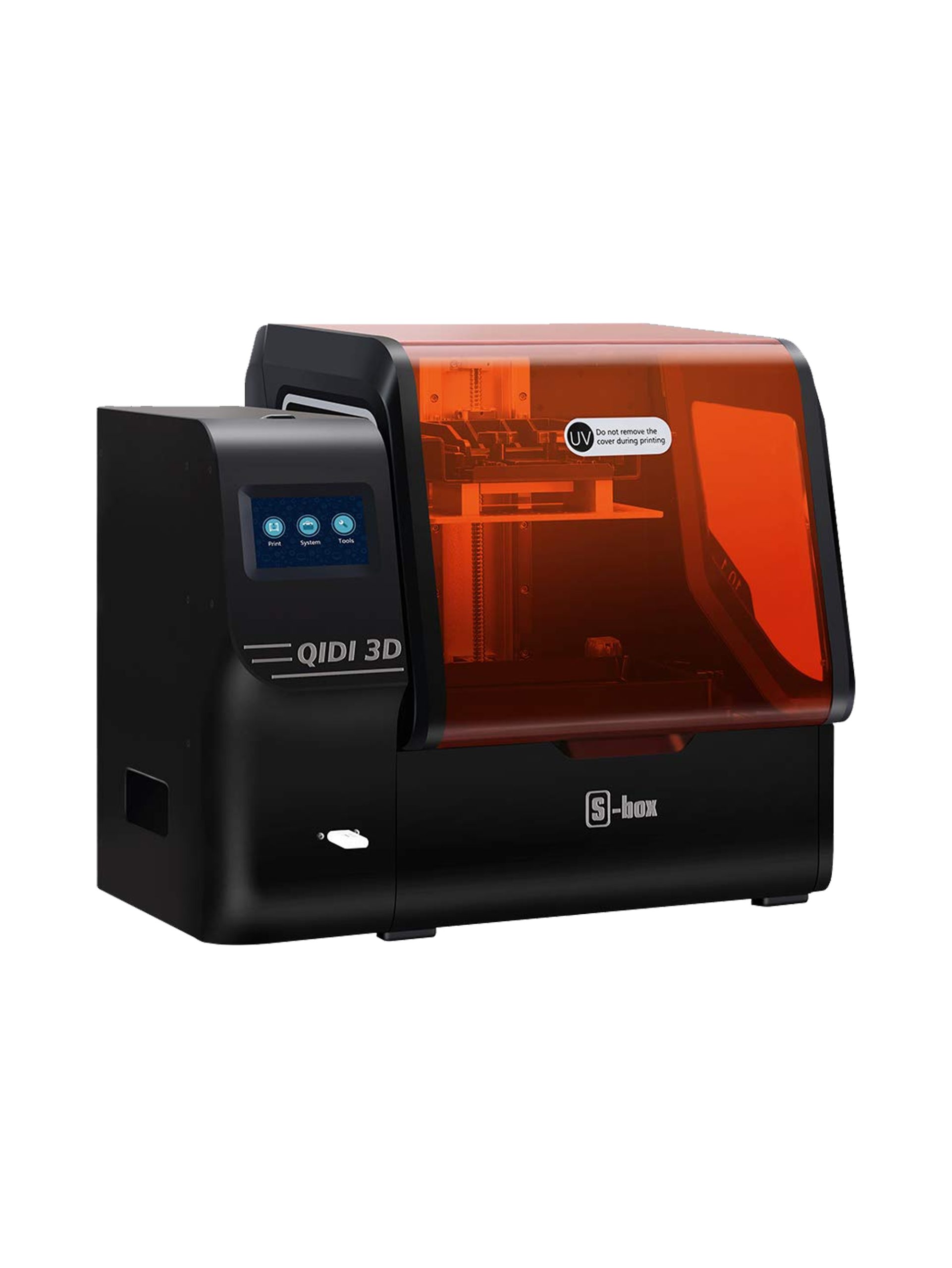

Big Size LCD Printer – S Box

2 Reviews Write a review
Product codeS Box

Dispatch Date is 15 April,2021

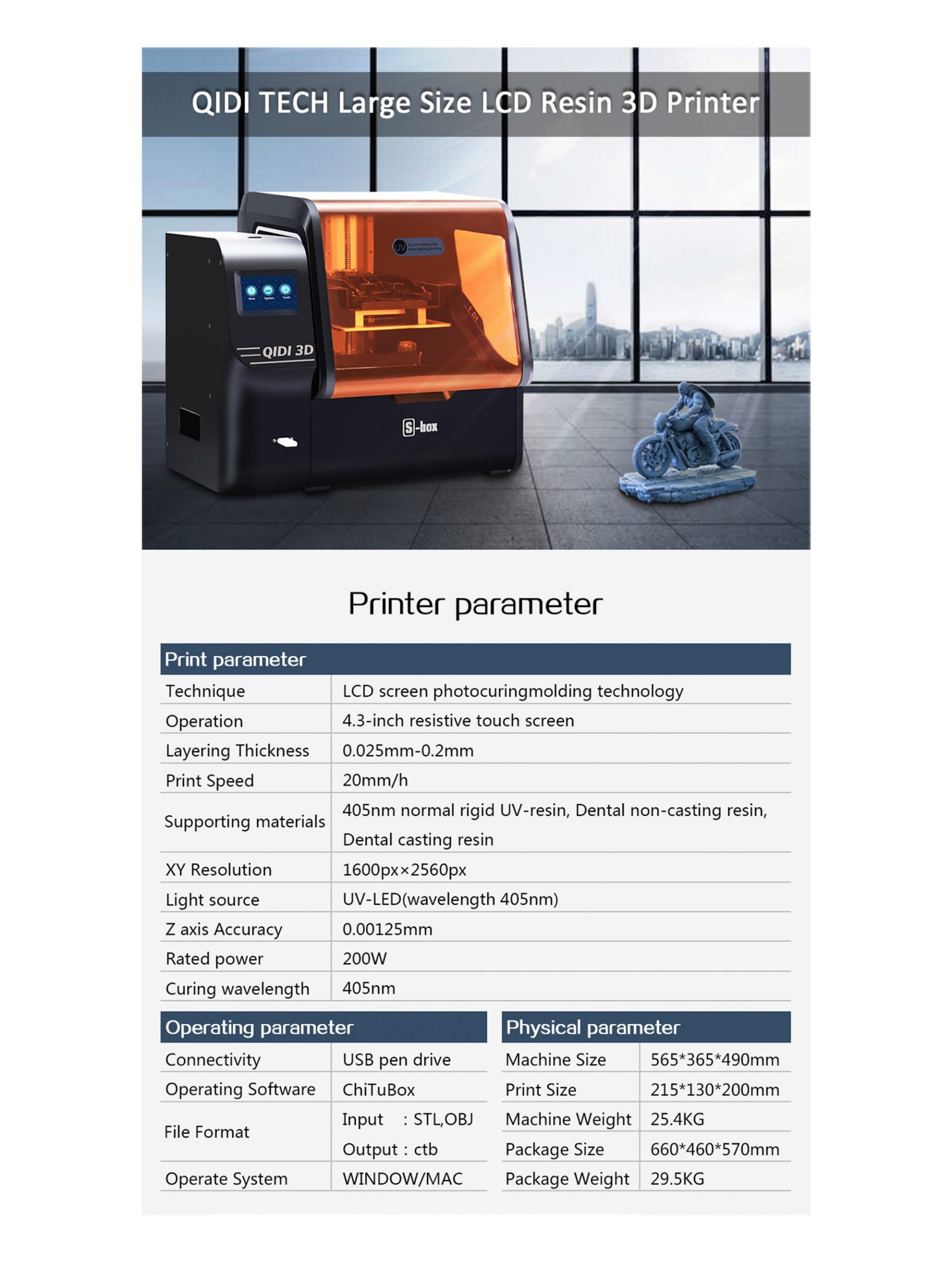

Printer Dimension: 565mm(L)*365mm(W)*490MM(H)

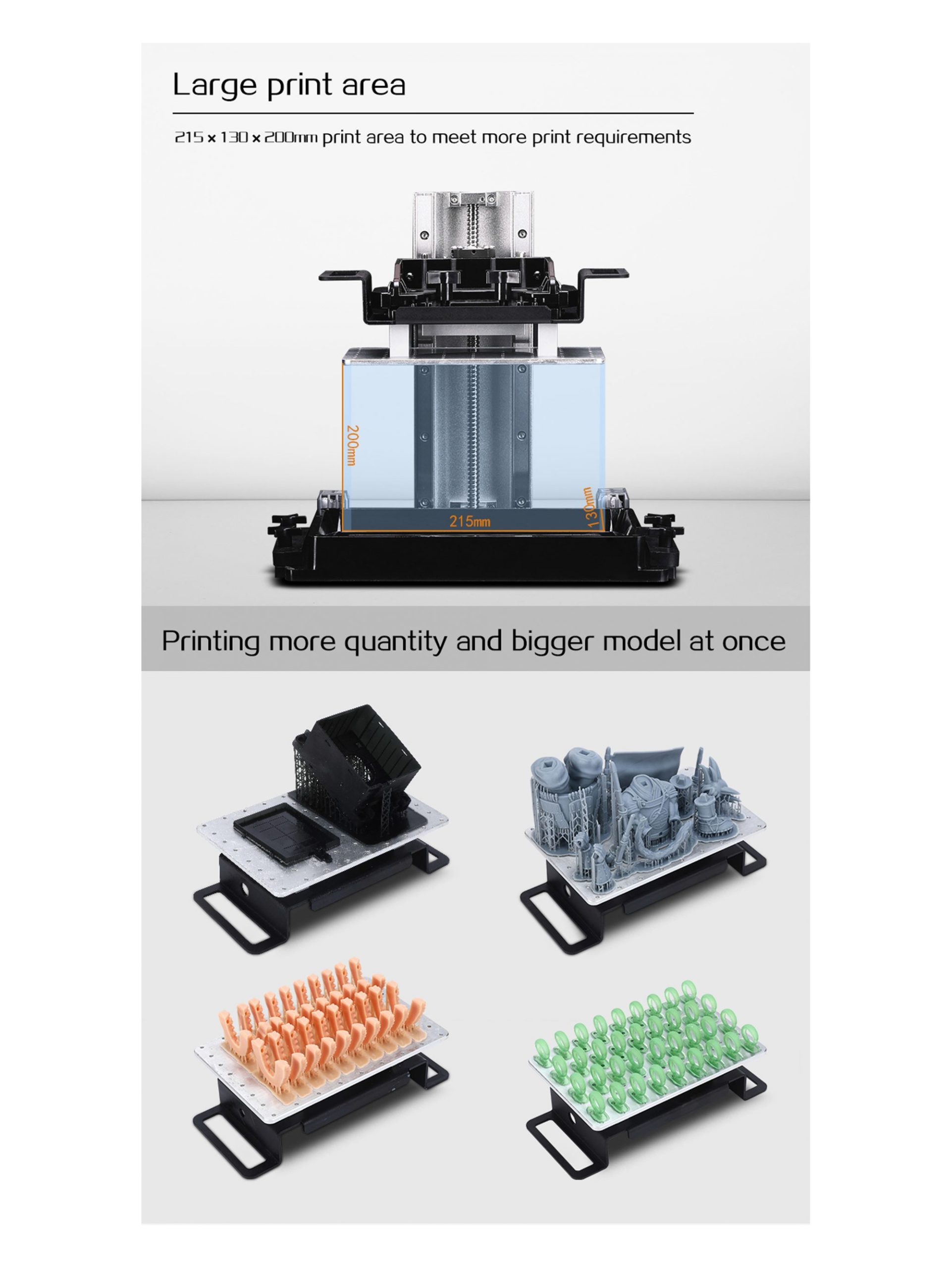

Build volume: 215mm(L)*130mm(W)*200mm(H)
Light source UV-LED(wavelength 405nm)
XY Resolution 0.047mm(2560*1600)
Z axis Accuracy 0.00125mm
Suggested Layer Thickness 0.025-0.1mm
Operation :4.3-inch Color Resistive Touch Screen
Connectivity: USB Pen Drive



155,000

MRP is inclusive of all taxes.

Product is out of stock

Description

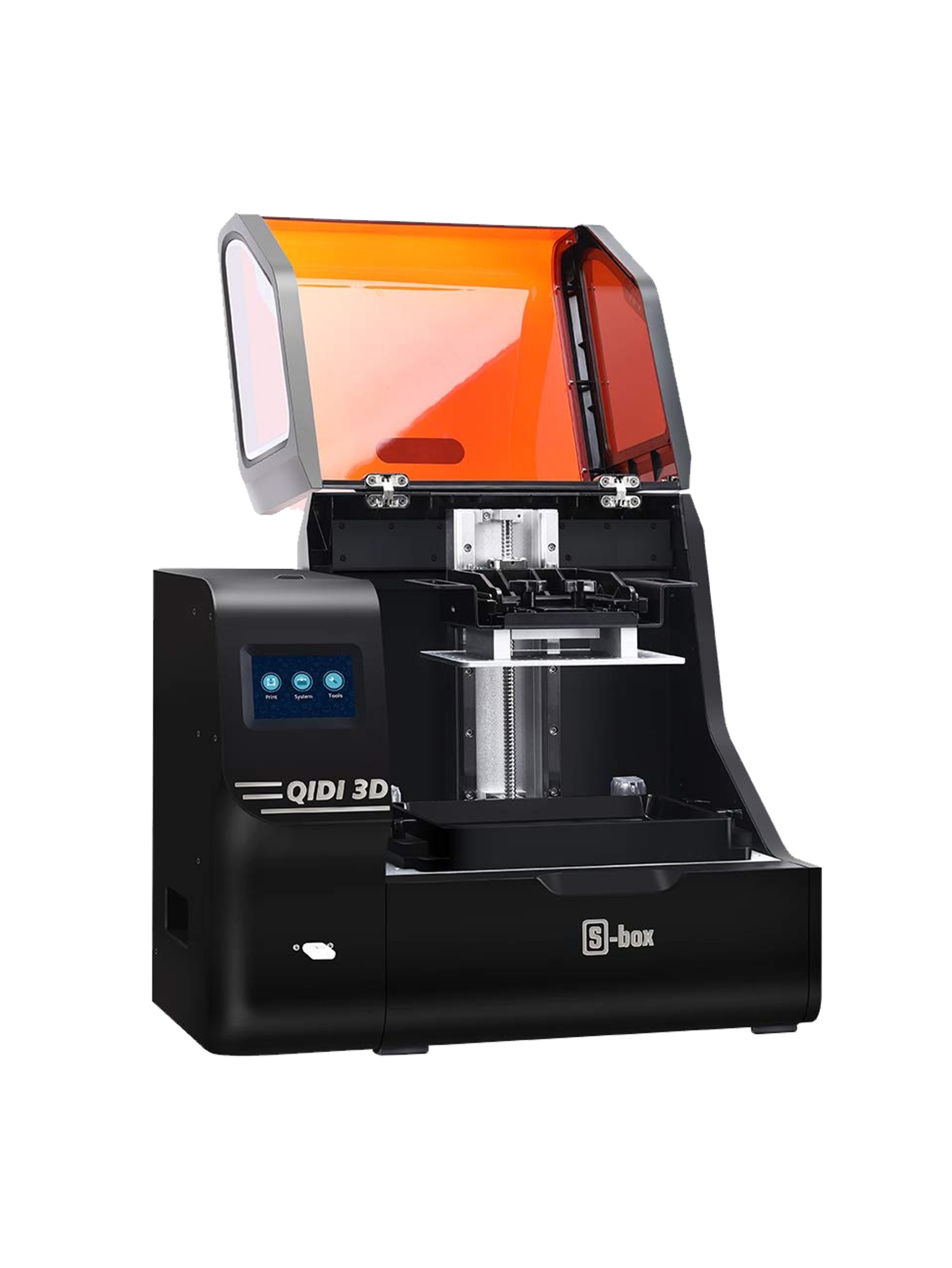

  •  S-BOX is a big size lcd resin 3D printer newly developed by our company. The printing and leveling structure is uniquely designed by our team, one-key leveling. Double-layer insert structure, very simple to use. The structure is made of cast aluminum one-time molding, it is more stable and better mechanical structure when printing larger models.

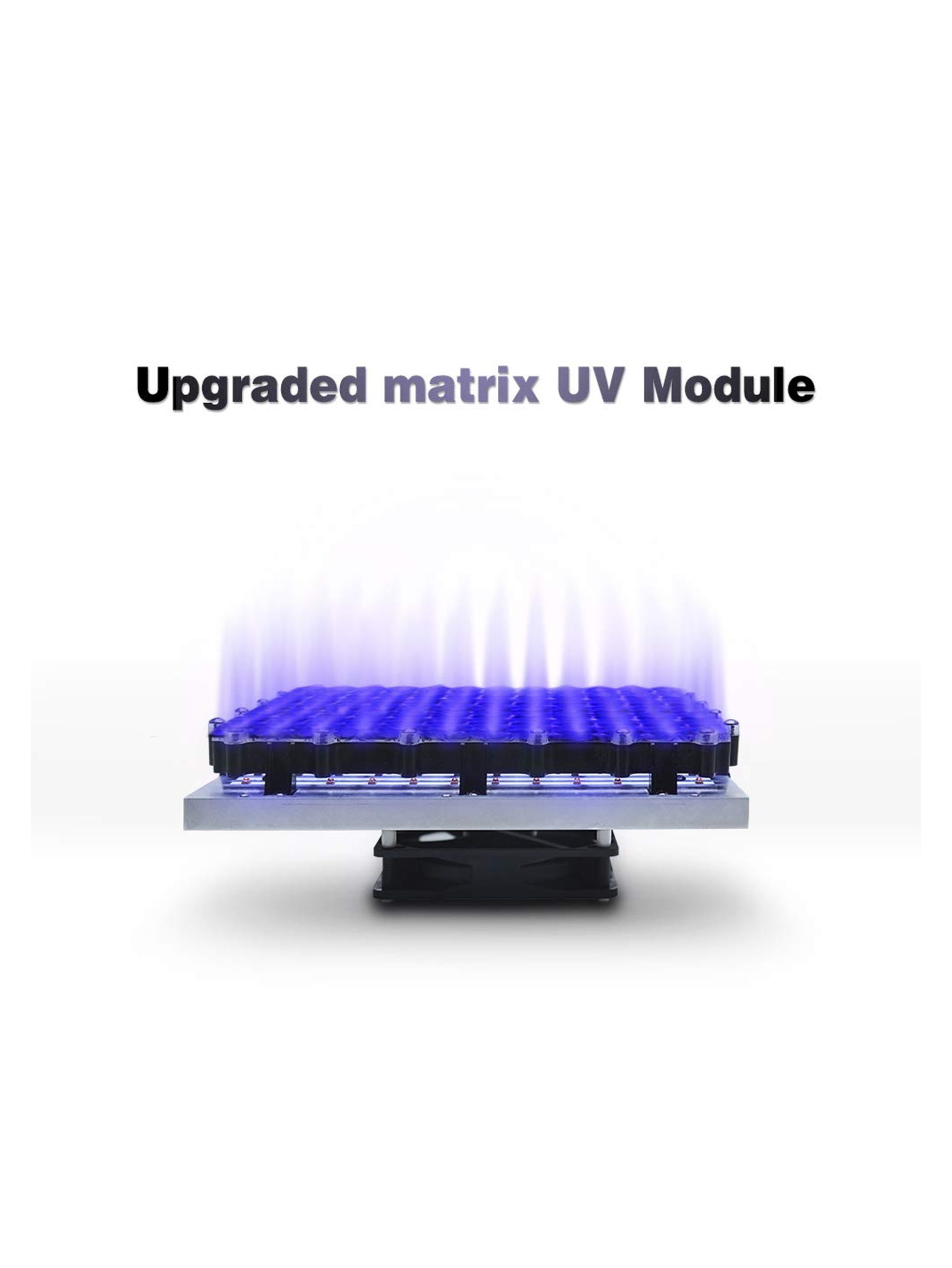

  • The S-BOX light source solution adopts the third-generation matrix parallel light source with a combination of 96pcs 130-watt UV LED light sources. Equipped with a 10.1-inch high-precision screen (2K Taiwan AUO), the light is more uniform and the printing accuracy is better. It is perfectly compatible with the latest Chitu software version 1.65, which is smarter and easier to operate. Using the latest slicing format files, the slicing speed is greatly improved.
  • S-BOX is industrially designed by a professional team. The large-format internal structure is made of aluminum CNC technology. Printing a large model can greatly improve the stability of the model during stretching, ensuring the quality of the model. The tensile structure adopts a double-line guide rail, with an industrial-grade ball screw in the middle, and the accuracy of the Z axis can reach 0.00125mm. S-BOX is the first Z-axis motor equipped with TMC2209 drive intelligent chip.
  • The newly developed aluminum casting resin vat is optimized to match the latest generation of FEP film. Improved that the FEP film is excessively pulled and often damaged during printing of large-size models. The redesigned structure doubles the service life of the FEP film.

BIG SIZE LCD RESIN PRINTER CAN USE RESIN FROM OUR OWN COLLECTION.

Unboxing

S Box LCD Printer

Additional information

Brand

Hi Tech

Industry

Healthcare, Jewellery

Build Volume

565*365*490mm

Reviews

    WOL3D
    October 9, 2024
    This printer has everything you can imagine. yes it is big but it's a solid easy to use design. One of the best open platforms, meaning not cramped or difficult to load and unload. easy to understand controls.
    WOL3D
    October 9, 2024
    Purchased this Qidi S Box to 3D print my prototypes and it does that very well. Excellent quality of print easy to operate. It is a heavy machine but that doesn't hold it back from being a great printer. Great customer Service. Would purchase a second unit without hesitation.
Add a review

Downloads

No additional downloads available.

Product Information

Manufactured by

Zhejiang Qidi Technology Co., Ltd

No. 29, Building No.178, East 2 Road, Gexiang New Area, Ruian Economic Development , China

Marketed by

WOL3D India Limited

19/B(1), 2Nd Floor, Hakoba Compound , Kalachowky, Mumbai - 400033

Country of Origin

PRC
